How Gearseiko Improves Hard Gear Finishing Accuracy

In high-end mechanical transmission systems, the finishing precision of hardened gear tooth flanks is the core factor that determines gear meshing noise, fatigue service life and ultimate load capacity. As a high-standard hard gear finishing process based on the crossed helical gear meshing principle, gear honing has become an indispensable procedure for manufacturing premium-grade precision gears. Combining decades of practical gear production experience, Gearseiko optimizes professional gear honing equipment and mature honing processes, delivering balanced solutions for high precision, stable quality and cost-effective hard gear finishing.Explore professional hard gear finishing and precision honing solutions here.

Gear honing is a high-precision micro-finishing technology for heat-treated hardened gears. The gear honing machine adopts gear-shaped or worm-shaped honing tools. Following the crossed helical gear meshing principle, the honing tool drives the workpiece gear to perform smooth free rotation. The uniform abrasive grains on the hone surface conduct micro-cutting, micro-polishing and precise profile correction on the hardened tooth flanks.

This process effectively eliminates minor tooth profile errors, compensates heat treatment distortion, and greatly optimizes tooth surface roughness. Most gear honing machines adopt a horizontal workpiece spindle layout, which simplifies automated loading and unloading and ensures full contact of cutting fluid in the meshing area for consistent finishing effects. According to different honing tool structures, gear honing machines are mainly divided into two mainstream types.

This type of equipment uses a worm-shaped hone to form a crossed-axis meshing pair with cylindrical gear workpieces. The ultra-long continuous contact line between the worm hone and the gear workpiece enables stable and uniform micro-cutting throughout the honing process. It avoids intermittent cutting marks and delivers excellent surface consistency.

Worm hone honing machines are highly adaptable for medium-module cylindrical gears and support large-scale continuous production. Widely applied in automotive transmission gears and precision speed reducer gears, the process stably achieves a tooth surface roughness below Ra 0.2 μm, meeting ultra-low noise requirements for mass-produced transmission components.

Different from external meshing worm hones, internal toothed hone machines adopt an internal gear-shaped honing tool to form an internal meshing structure with the workpiece gear. The internal meshing mode features more uniform contact stress distribution and superior profile correction performance.

Benefiting from the optimized curvature characteristics of internal gear meshing, this equipment excels in correcting complex tooth profile errors and improving lead accuracy and tooth crowning consistency. It is specially designed for large-module, high-precision hard gears, including industrial robot joint gears and aerospace transmission gears, meeting strict high-end equipment precision standards.

As a manufacturer integrating precision gear production and equipment R&D, Gearseiko optimizes every detail of honing machine design based on real production pain points. Our self-developed gear honing equipment possesses unique technical advantages in stability, flexibility and intelligent control:

High-rigidity spindle system: The reinforced spindle structure effectively suppresses high-frequency vibration during high-speed honing, guarantees ultra-high motion accuracy, and improves overall tooth surface uniformity and batch consistency.

Intelligent free-rotation adaptive control: Equipped with real-time torque monitoring and self-adaptive operational algorithms, the system ensures completely free and smooth rotation of workpieces. It thoroughly avoids tooth profile distortion and meshing deviation caused by forced twisting during processing.

Precise flexible profile correction capability: Supports programmable customized correction of tooth profile, lead modification and tooth crowning. It can flexibly adapt to diverse product demands, ranging from low-noise electric vehicle drive gears to heavy-load industrial transmission hard gears.

Fast modular changeover design: Adopts standardized modular structures for workholding fixtures and honing tools. The entire specification switching process can be completed within 15 minutes, perfectly matching high-mix, small-batch customized production modes.

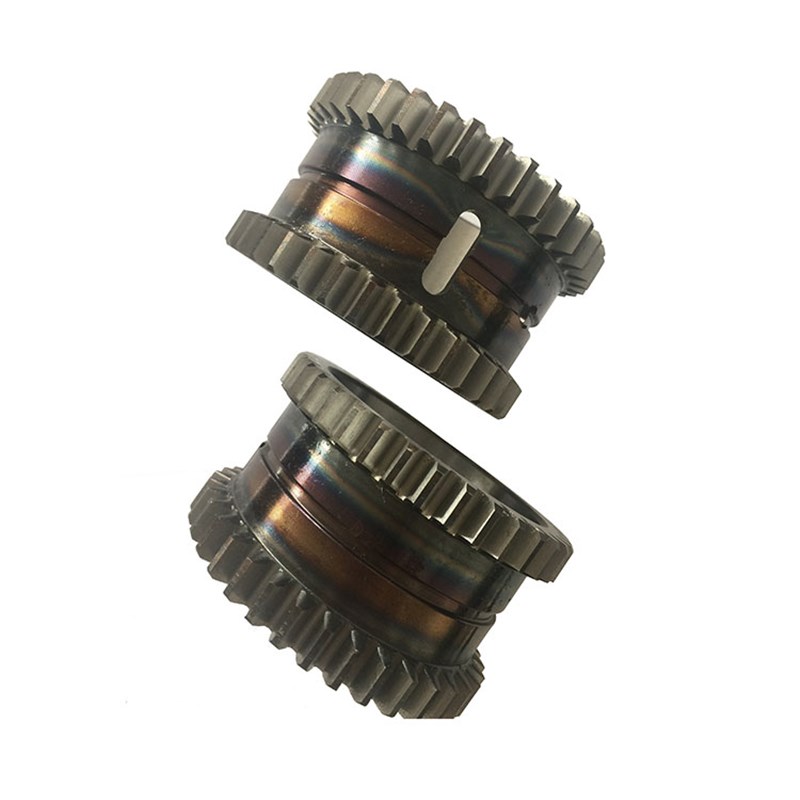

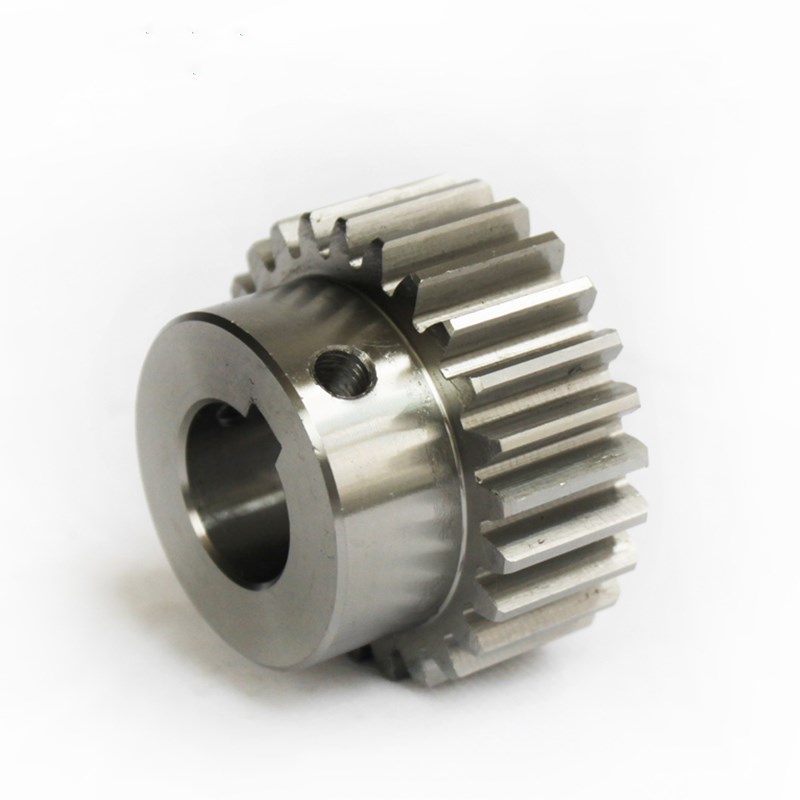

After hobbing, shaping, carburizing and quenching, hardened gears inevitably generate minor heat treatment distortion and surface defects. Traditional gear grinding delivers high precision yet suffers from low production efficiency and high processing costs, which restricts large-scale mass production.

Gear honing achieves near-grinding-level precision with higher efficiency and lower unit production cost. More importantly, the micro-honing process optimizes the residual compressive stress distribution on tooth flanks, effectively improving gear contact fatigue resistance and extending comprehensive service life. Gearseiko’s honing process perfectly balances precision, surface quality, production efficiency and economic benefits, becoming the optimal solution for mass finishing of hardened gears.

In the increasingly competitive high-end precision transmission industry, the value of gear honing is no longer limited to simple material removal. It focuses on optimizing overall gear meshing performance, reducing operating noise and improving transmission stability. Gearseiko masters full-process honing technology covering worm-shaped hone and internal toothed hone solutions, providing one-stop hard gear finishing services for diverse precision gear products.

If you are looking for reliable and high-efficiency hardened gear finishing solutions to upgrade your product quality, welcome to contact the Gearseiko professional technical team. We customize exclusive honing processes and equipment matching schemes for your precision gear manufacturing projects.

---

A1: Gear honing is a hard gear micro-finishing technology based on crossed helical gear meshing. The honing tool drives the workpiece gear to rotate freely, realizing micro-cutting, profile error correction and surface polishing on hardened tooth flanks.

A2: Worm-shaped hone gear honing machines and internal toothed hone gear honing machines, applied for medium-module mass production and high-precision large-module gear processing respectively.

A3: It features continuous stable cutting, excellent surface finish up to Ra 0.2 μm, high efficiency, and is ideal for mass production of automotive and reducer gears.

A4: It has superior profile correction and lead accuracy, suitable for high-precision and large-module hardened gears used in robots and aerospace equipment.

A5: Gear honing achieves near-grinding precision with higher efficiency and lower cost, optimizes tooth surface residual stress, and improves gear fatigue life, ideal for mass hard gear finishing.
