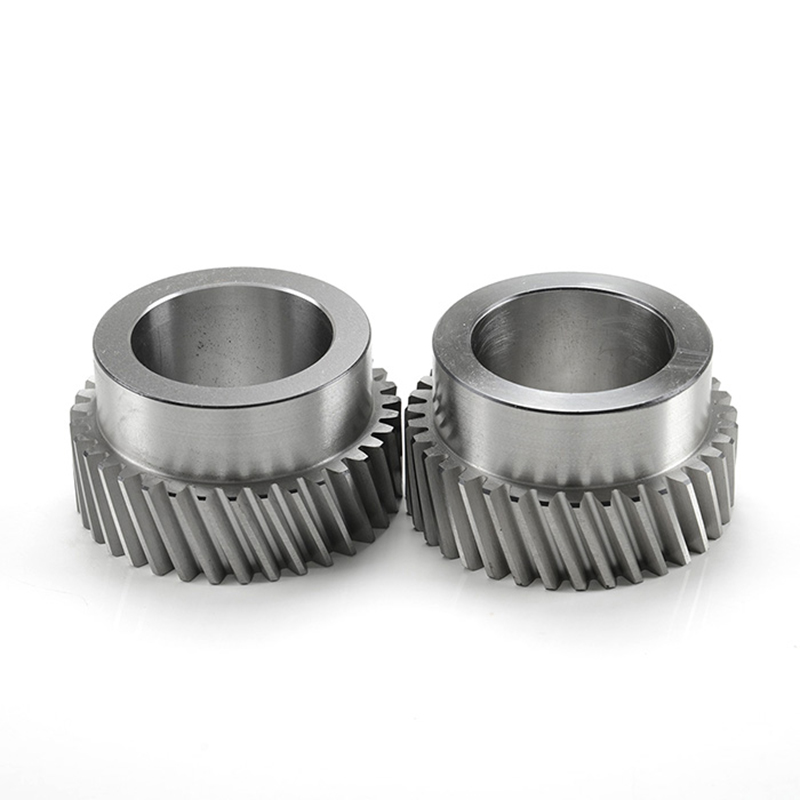

Precision Low-Carbon Steel Helical Gears for High-Pressure Vane Pumps: A Performance Benchmark from Gearseiko

In the demanding world of high-pressure vane pumps, every component must endure extreme loads, continuous operation, and minimal tolerance for failure. At the heart of these systems lies the helical gear — a critical element that directly influences pump efficiency, noise level, and service life. For engineers and procurement specialists seeking uncompromising quality, Gearseiko delivers precision-machined low-carbon steel helical gears, purpose-built for the most rigorous high-pressure applications. Our components currently power a leading American high-pressure vane pump manufacturer’s product line, proving their mettle in real-world conditions.

Why Helical Gears Excel in High-Pressure Vane Pumps

Unlike spur gears, helical gears feature angled teeth that engage gradually and smoothly. This geometry offers distinct advantages for high-pressure vane pumps:

• Reduced Pressure Ripple: The overlapping tooth contact minimizes flow pulsation, resulting in steadier output pressure and lower system vibration.

• High Load Capacity: Helical gears distribute force across multiple teeth simultaneously, reducing peak stress and enabling reliable operation at elevated pressures.

• Quieter Operation: The progressive engagement cuts meshing noise dramatically — a critical benefit for applications where noise regulation or operator comfort matters.

When these gears operate inside a vane pump, they transmit torque from the drive shaft to the rotor assembly. Any deviation in gear accuracy directly translates to efficiency loss, heat generation, and premature wear. That is why Gearseiko insists on extreme precision — from blank preparation to final inspection.

The Low-Carbon Steel Advantage

Selecting the right material is as vital as the gear geometry. While many manufacturers default to through-hardened alloy steels, Gearseiko chooses low-carbon steel (e.g., 8620, 4320) for our high-pressure vane pump helical gears — and for good reason.

Case-Hardened Strength with a Tough Core

Low-carbon steel alone lacks surface hardness. However, after precision machining, we apply a controlled carburizing and quenching process. This creates a deep, uniform case hardness (58–62 HRC) while retaining a ductile, shock-absorbing core. The result is a gear that withstands:

• High contact stresses without pitting or spalling.

• Impact loads during start-up or pressure spikes without tooth fracture.

• Fatigue cycles far beyond what uniform-hardness materials can tolerate.

Superior Wear Resistance in Contaminated Lubrication

High-pressure vane pumps often operate with marginal filtration or in environments where fine particles enter the fluid. The hard, carburized surface of low-carbon steel gears resists abrasive wear significantly better than through-hardened alternatives. Meanwhile, the soft core prevents crack propagation — a common failure mode in brittle gears.

Cost-Effective Manufacturing Without Compromising Quality

Low-carbon steel is more forgiving during hobbing and shaping operations, allowing Gearseiko to achieve AGMA Class 12 or higher precision consistently. Post-carburizing grinding removes distortion and yields mirror-finish tooth flanks, reducing friction and improving efficiency. This combination of machinability and final hardness offers exceptional value — especially for high-volume OEM applications.

Engineered for a Leading US High-Pressure Pump Manufacturer

Gearseiko currently supplies custom helical gears to a premier American manufacturer of high-pressure vane pumps — a company known for zero-compromise engineering. These gears operate at pressures exceeding 3,000 psi and speeds up to 3,600 rpm, driving hydraulic systems in mobile and industrial equipment.

Our customer’s validation tests confirmed:

• 15% lower noise compared to previous spur-gear designs.

• Double the estimated service life over competitive helical gears made of through-hardened steel.

• Full interchangeability with existing pump assemblies, enabling seamless retrofitting.

Why Partner with Gearseiko?

• Process Integration: We control every step — from low-carbon steel sourcing, hobbing, heat treatment, to precision grinding and inspection — ensuring traceability and consistency.

• Metallurgical Expertise: Our in-house lab validates case depth, core hardness, and microstructure per ISO 6336 and AGMA 925 standards.

• Application Engineering: We collaborate on tooth modifications (tip relief, crowning) to optimize contact patterns for your specific vane pump design.

Conclusion

For high-pressure vane pumps, the helical gear is not merely a power transmission component — it is a reliability enabler. By combining helical tooth geometry with case-hardened low-carbon steel, Gearseiko delivers gears that absorb shock, resist wear, and maintain precision under sustained pressure. Our successful partnership with a leading US pump manufacturer demonstrates that this approach is not theoretical — it is proven.

If you are designing or upgrading a high-pressure vane pump and demand helical gears that set the standard for durability and performance, contact Gearseiko. Let us engineer the precision that keeps your pumps running — quietly, efficiently, and reliably.
