Defeating Rolling Contact Fatigue: How Gearseiko Makes Gear Surfaces More Durable

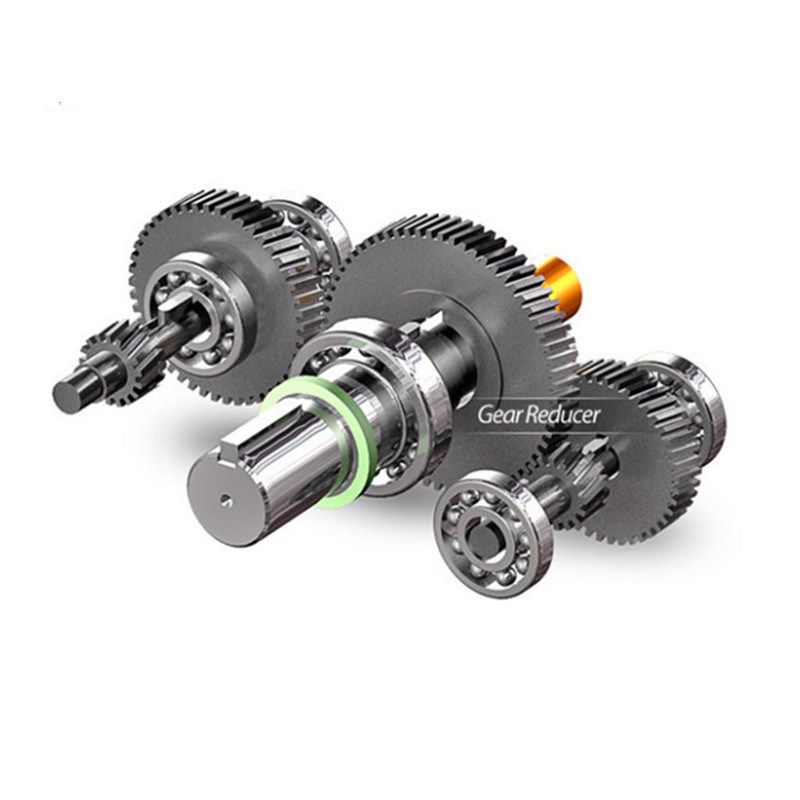

In the world of high‑precision power transmission, rolling contact fatigue (RCF) remains a core challenge affecting gear life and reliability. Whether in electric vehicle reducers, wind turbine gearboxes, or aerospace drive systems, premature pitting on tooth flanges often leads to costly downtime and performance loss. As a manufacturer dedicated to high‑end precision gears, Gearseiko provides anti‑fatigue gear solutions that far exceed industry standards, thanks to a deep understanding of RCF mechanisms and systematic process innovation.

Rolling Contact Fatigue: The Hidden Killer near the Pitch Line

Tooth flank contact fatigue damage most frequently occurs in three typical regions – on the pitch line or on both sides of it. For spur, helical, and bevel gears, only pure rolling stress exists on the pitch line, while both rolling and sliding stresses act on the two sides. This seemingly subtle difference determines the unique laws of crack initiation and propagation.

Under pure rolling conditions at the pitch line, the maximum shear stress typically appears 0.18–0.30 mm below the contacting surface, just ahead of the contact point. It is at this depth that cyclic shear stress peaks, and cracks quietly initiate. In the early stage, cracks propagate roughly parallel to the surface. As rolling contact continues, the cracks may gradually deviate toward the surface, eventually causing material to flake off and form a pit.

Interestingly, the edge of a pit caused by pure rolling is initially perpendicular to the contacting surface, but subsequent rolling action tends to blunt and deform it. These pits are usually very small, and the accumulation of numerous micro‑pits gives the damaged surface a distinctive “frosted” appearance. Importantly, under many operating conditions this type of pitting does not continue to grow, and under certain elastohydrodynamic lubrication conditions it can even exhibit a “self‑healing” phenomenon – a subtle point that can be exploited in high‑end gear design.

Two Distinctive Features of Rolling Contact Fatigue Pitting

Compared to pitting caused by conventional sliding‑rolling (sliding + rolling) contact, pure rolling contact fatigue pitting has two key differences:

First, no plastic deformation is present on the damaged surface. In sliding‑rolling contact, sliding friction is usually accompanied by obvious plastic flow or smearing. Gearseiko has confirmed through extensive failure analysis that around pits dominated by pure rolling contact fatigue, the material shows no plastic deformation, and the surface retains its original machining texture. This characteristic becomes an important basis for us to identify failure modes and optimise gear modifications.

Second, a “butterfly wing” microstructure appears under the hardened surface layer. For hardened surfaces containing martensite and a small amount of retained austenite, cyclic rolling contact loading induces a distinctive microstructural feature – resembling “butterfly wings”. This structure is essentially a white etching area that forms around subsurface non‑metallic inclusions or carbides. It occurs when plastic deformation is strongly constrained by the surrounding high‑hardness matrix. The higher the shear stress, the more pronounced the butterfly wings. Gearseiko’s metallurgical team precisely controls the retained austenite content (optimally 8–15 %) and refines martensite lath length, effectively suppressing excessive growth of butterfly wings and delaying crack initiation.

Gearseiko’s Anti‑Fatigue Technology System

Based on the above mechanisms, Gearseiko has established a full‑chain anti‑RCF system covering material, heat treatment, surface integrity, and micro‑geometry design:

• High‑purity steelmaking and homogenisation: Using vacuum degassing + electro‑slag remelting, we control non‑metallic inclusions (oxides, sulphides, etc.) to below Grade 0.5 of ISO 4406, eliminating nucleation sites for butterfly wings at the source.

• Controlled case hardness profile: Through carbonitriding and cryogenic treatment, we obtain a gradient residual compressive stress field. We precisely match the maximum shear stress region (0.18–0.30 mm depth) to the peak hardness zone of the case, while retaining 10–12 % stable retained austenite to absorb subsurface strain energy via transformation‑induced plasticity.

• Superfinished surface and micro‑modification: Surface roughness Ra ≤ 0.1 μm, combined with dedicated modifications around the pitch line (crowning + tip relief), ensures that pure rolling stress is uniformly distributed along the face width, avoiding local peak shear stress that could prematurely induce cracks.

• Rolling contact fatigue validation: Every Gearseiko precision gear undergoes twin‑disc rolling contact fatigue bench testing. Measured L10 life is more than three times higher than the ISO 6336 standard, and pitting exhibits the controllable “frosted” appearance rather than catastrophic spalling.

Choose Gearseiko – Make Pitting No Longer a Bottleneck

Rolling contact fatigue cannot be completely eliminated, but through precision manufacturing and scientific design its onset can be postponed beyond the full service life of the equipment. Gearseiko not only provides gears that meet the highest grades of AGMA and DIN standards, but also offers complete technical solutions – from failure mode analysis to anti‑fatigue modification design. Whether you need aerospace gears for high‑speed pure rolling conditions or industrial power transmission gears for heavy‑duty mixed sliding‑rolling conditions, we deliver precision gears with longer life, lower noise, and higher reliability.

Contact Gearseiko’s gear experts today for an anti‑RCF design white paper tailored to your application.
