Research on Dynamic Excitation of Gear Meshing Stiffness: How Gearseiko Redefines High-End Transmission Performance with Precision Calculation

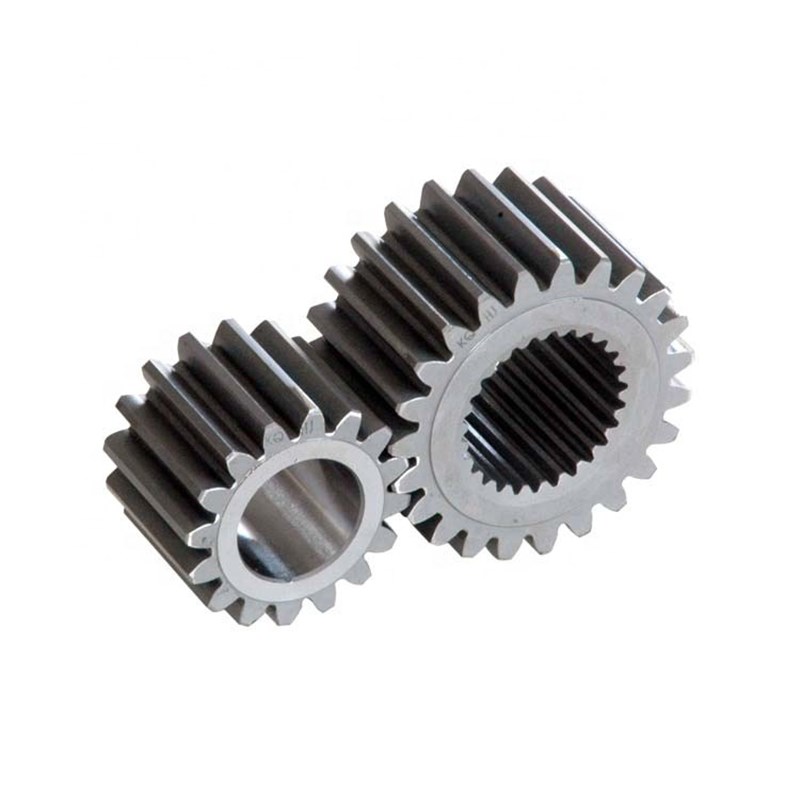

In high-end precision gear transmission systems, the dynamic variation of meshing stiffness is a decisive factor affecting vibration characteristics, noise levels, and overall service life. When gears are subjected to external loads, tooth elastic deformation inevitably occurs, causing meshing stiffness to fluctuate continuously with the meshing position. Determining the dynamic excitation of system stiffness is of critical importance for optimizing gear dynamic performance and reducing transmission errors. As a leading manufacturer focused on high-end precision gears, Gearseiko deeply integrates decades of research achievements in gear elastic deformation with modern numerical methods, delivering precision gear solutions with controllable stiffness and stable transmission.

From Cantilever Beam Models to Multi-Deformation Coupling: The Evolution of Stiffness Theory

Research on gear meshing stiffness dates back to 1929, when R.V. Band and R.E. Peterson first simplified a gear tooth as a cantilever beam with a continuously varying cross-section to calculate elastic deformation. Between 1938 and 1940, H. Walker combined experimental data with theoretical derivation to quantitatively determine tooth deformation. In 1949, C. Weber, building on Walker’s results, meticulously divided tooth elastic deformation into shear deformation, bending deformation, and compressive deformation. His theoretical results agreed well with Walker’s experimental data, validating the correctness of this approach. Subsequently, A.Y. Attia (1964) further analyzed deformation by considering the influence of tooth edge deformation. T. Tobe (1973) incorporated the effect of tooth misalignment on deformation. In 1981, R.W. Cornell published his summary of research on tooth deformation, considering bending, shear, contact, and tooth foundation elastic deformation under external loads, while also noting that different fillet shapes at the tooth root produce different deformations—a detail that is a key consideration in Gearseiko’s precision gear modification design.

Advances in Mathematical Elasticity and Numerical Methods

Y. Terauchi and colleagues used mathematical elasticity methods, applying conformal mapping to transform the curved tooth boundary into a straight-line boundary, solving complex functions to obtain the displacement field of a half-plane and thus calculating the deformation at the force application point. Cheng Naishi and others further advanced the approximate solution of meshing force to an exact solution based on complex function methods in plane elasticity theory. With the widespread application of computers and rapid development of computational techniques, numerical methods have made it convenient to study gear stress and deformation. The finite element method (FEM) became a typical numerical approach. From the early 1970s, FEM effectively solved tooth root stress and elastic deformation problems, initially using single-tooth finite element models, so the calculated deformation corresponded to a single tooth under external load. Wei Renzhi and colleagues calculated finite element models for gears with various parameters and used regression analysis to fit the results, obtaining an approximate formula for single-tooth elastic deformation. J.J. Coy analyzed and corrected errors by establishing new finite element models and refining element sizes near the contact area. Li Runfang and colleagues pioneered the use of contact FEM to study multi-tooth simultaneous meshing conditions. Based on elasticity theory, contact FEM models more closely represent real operating conditions, with the calculated results including bending, shear, compression, and contact deformations, making it easy to visualize tooth deformation results and stress distributions. The finite element method is widely used to calculate gear meshing stiffness and transmission errors, automatically incorporating all error effects including manufacturing errors, assembly errors, and profile errors from tooth modifications. However, for meshing stiffness calculation, FEM requires mesh refinement and is considerably time-consuming. On the other hand, compared to FEM models, analytical methods significantly reduce computation time for gear meshing stiffness, making them an irreplaceable important approach. Therefore, many researchers have turned their attention back to analytical studies of gear meshing stiffness, improving upon original assumptions to enhance calculation accuracy.

The Revival of Analytical Methods: Balancing Accuracy and Efficiency

P. Sainsot and colleagues used a material mechanics approach to derive a tooth foundation stiffness model, considering tooth foundation stiffness as part of total gear stiffness and treating it in series with tooth stiffness. F. Chaari and others analyzed bending deformation, contact deformation, and tooth foundation deformation in spur gear pairs. Z.G. Chen and colleagues employed the energy method, considering bending stiffness, shear stiffness, radial compressive stiffness, tooth foundation stiffness, and Hertzian contact stiffness to analyze gear meshing stiffness, and compared their results with FEM calculations, proving the accuracy of the energy method when these stiffness components are included. The above models all treat the gear tooth as a cantilever beam on the base circle. However, in reality, the tooth should be modeled as a cantilever beam on the root circle, and in most cases the base circle and root circle do not coincide. Ma Hui and colleagues established an improved gear meshing stiffness model considering this factor, analyzing meshing stiffness for gears with different tooth numbers. The results showed that for gears with a larger number of teeth, using the base-circle cantilever beam assumption leads to significant errors. For spur gears with profile errors, Z.G. Chen and others established deformation compatibility equations based on the geometric relationship between teeth, analyzing meshing stiffness and transmission errors including profile errors. To date, using the energy method to solve for stiffness more closely matches actual conditions and yields more accurate results.

Gearseiko’s Engineering Practice: From Theory to High-End Precision Gears

Based on this deep technical foundation, Gearseiko translates dynamic excitation research of gear meshing stiffness into quantifiable manufacturing standards. We employ a hybrid approach—using an improved energy method for rapid iteration of macro parameters (module, tooth number, modification coefficients, profile modifications) in initial design, and high-precision FEM for final validation of contact stress and stiffness curves. Meanwhile, our self-developed stiffness excitation analysis software automatically identifies errors caused by non-coincidence of base and root circles and optimizes profile modifications for different load spectra, reducing meshing stiffness fluctuation by more than 20%.

Whether for high-speed reduction gears in new energy vehicles, precision gears for industrial robot joints, or heavy-load gears for wind turbine gearboxes, Gearseiko delivers “controllable stiffness and stable transmission” as its core performance indicators. We deeply understand that every micrometer of elastic deformation affects the NVH performance and reliability of the entire system. Choosing Gearseiko means you gain a complete history of gear dynamics optimization—from Weber, Walker to modern FEM and the energy method—all intellectual achievements ultimately condensed into precision gears that exceed standards in accuracy and excel in dynamic performance.

Conclusion: Driving Future Transmission with Stiffness Determinacy

The study of dynamic excitation of gear meshing stiffness has spanned nearly a century. From the initial cantilever beam assumption to the systematic division into shear, bending, compression, contact, and tooth foundation deformations, and then to the parallel application of FEM and improved analytical methods, each theoretical breakthrough has opened new possibilities for gear performance improvement. Gearseiko not only faithfully inherits these achievements but also transforms them into engineered products. We sincerely invite transmission system engineers and manufacturers worldwide to cooperate with us, jointly leveraging precise stiffness control technology to create high-end transmission solutions with lower vibration and longer service life.

Gearseiko – The stiffness expert in precision gearing, making every meshing just right.
