Mastering Large Prime Number Gear Hobbing: Precision Solutions for Gears with Over 100 Teeth | Gearseiko
In high-end precision gear manufacturing, machining prime-tooth gears has always been a core technical bottleneck separating ordinary gear factories from professional high-precision manufacturers. Conventional gear hobbing processes can stably complete mass production of common composite-tooth gears with simple index ratio matching. However, prime number gears, especially large prime gears with more than 100 teeth, face insurmountable difficulties in indexing division, gear ratio matching and error compensation due to the indivisible mathematical characteristics of prime numbers. As a leading manufacturer focusing on complex special gear machining, Gearseiko has broken through the technical pain points of large prime gear hobbing via optimized differential compensation systems and professional gear ratio calculation algorithms. We provide stable, high-precision hobbing solutions for large prime gears serving extreme working conditions.
1. Core Technical Difficulties of Prime Number Gear Hobbing
The whole gear hobbing process relies on precise indexing transmission to ensure uniform tooth space distribution and consistent tooth profile accuracy. The core difficulty of prime gear machining concentrates on workpiece indexing rotation: the hobbing machine needs to drive the workpiece to rotate an accurate fixed fractional angle for each tooth cutting cycle to form qualified equal-divided tooth grooves.
For conventional composite tooth gears, complete index matching can be realized directly by assembling standard matched change gears. Nevertheless, prime numbers cannot be factored into any two positive integers except 1 and themselves. It is impossible to split the indexing ratio into conventional matched change gear combinations, which directly leads to the failure of traditional hobbing indexing logic. According to different tooth counts, prime gears are divided into three difficulty gradients with completely different machining schemes:
1.1 Small Prime Gears (Below 20 Teeth)
Representative tooth counts: 13, 17, 19. Manufacturers can adopt integer multiple matching of prime tooth counts to select standard change gears. No additional machine modification or error compensation system is required, and the hobbing process is basically consistent with ordinary standard gears.
1.2 Medium Prime Gears (20-100 Teeth)
Representative tooth counts: 23, 29, 31, 37, 41, 43, 47, 53, 59, 61, 67, 71, 73, 79, 83, 89, 91, 97. Most mainstream hobbing machines are equipped with supporting special change gears for medium prime tooth counts. The process difficulty is moderate, and regular standardized hobbing production can be completed with simple gear position adjustment.
1.3 Large Prime Gears (More Than 100 Teeth) – The Hardest Core Scenario
Representative tooth counts: 101, 103, 107, 109, 113, 127 and other common large prime teeth. This is the most challenging machining scenario in gear hobbing industry. Standard hobbing machines are not equipped with supporting dedicated change gears for such large prime tooth counts. Meanwhile, the non-factorizable feature of prime numbers makes traditional indexing splitting completely invalid. Without targeted compensation technology, finished gears will have severe indexing errors, uneven tooth spacing and unqualified meshing accuracy, resulting in full workpiece scrappage.
2. Mainstream Industrial Solutions for Large Prime Gear Hobbing
To solve the indexing failure problem of large prime gears, the gear manufacturing industry has iterated two mature and widely applied differential compensation processing schemes, both optimized and applied in mass production by Gearseiko:
2.1 Single Differential Mechanism Index Error Compensation
This scheme adopts virtual tooth count alternative matching. Engineers set a factorable virtual tooth count (Z₀ = Z ± Δ) to replace the actual large prime tooth count for preliminary change gear matching. The residual indexing error generated by virtual tooth count replacement is automatically offset and corrected in real time through the built-in differential gear train of the hobbing machine. This method has low machine modification cost and is suitable for small-batch and medium-precision large prime gear orders.
2.2 Double Differential Gear Device High-Efficiency Machining
As an upgraded high-precision solution independently optimized by Gearseiko, the double differential mechanism realizes full-range precise indexing without relying on massive special change gears. It can cover all prime and composite tooth counts within 250 teeth with only half of conventional change gear configurations. It effectively reduces repeated gear replacement time, shortens setup debugging cycle, improves production efficiency by nearly 40%, and controls cumulative indexing error within 0.005mm, perfectly matching high-precision gear drawing requirements.
3. Gearseiko’s Integrated Precision Manufacturing System for Large Prime Gears
Aiming at the pain points of difficult ratio calculation, large indexing error and low production efficiency in large prime gear processing, Gearseiko has built a full-process closed-loop precision manufacturing system covering equipment upgrading, algorithm calculation and full-process quality inspection:
-
High-precision servo differential hobbing equipment: All core hobbing machines are equipped with customized dual closed-loop differential compensation systems, supporting real-time dynamic error correction during high-speed hobbing, avoiding thermal deformation and mechanical backlash interference
-
Professional exclusive gear ratio calculation team: For each non-standard large prime tooth count, engineers conduct one-to-one manual accurate calculation of change gear combination and differential parameter setting, abandoning universal approximate algorithms to guarantee original indexing accuracy
-
Full-process dimensional inspection: Complete tooth pitch error detection, cumulative indexing error inspection and tooth profile precision testing after hobbing, ensuring every batch of large prime gears meet international high-precision gear standards
4. Application Scenarios of Large Prime Number Gears
Large prime gears are not conventional general-purpose gears. Their unique non-multiple indexing characteristics can effectively avoid meshing resonance, reduce periodic transmission impact and lower operating noise. They are mostly applied in high-reliability extreme working condition equipment with strict precision requirements:
-
Aerospace power transmission components: engine auxiliary transmission systems, precision steering actuators
-
Marine heavy-duty propulsion equipment: ship deck transmission machinery, offshore wind power yaw drive systems
-
New energy wind energy equipment: wind turbine precision speed change gear sets
-
Ultra-precision industrial machinery: high-precision machine tool spindle transmission, robotic joint reducers
5. Full-Spectrum Gear Machining Capabilities of Gearseiko

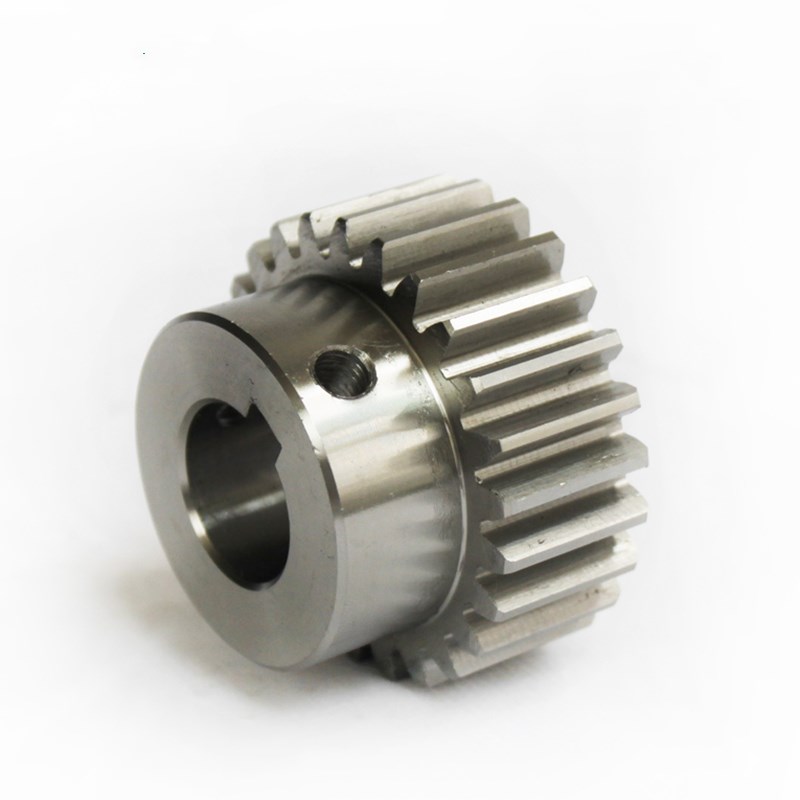

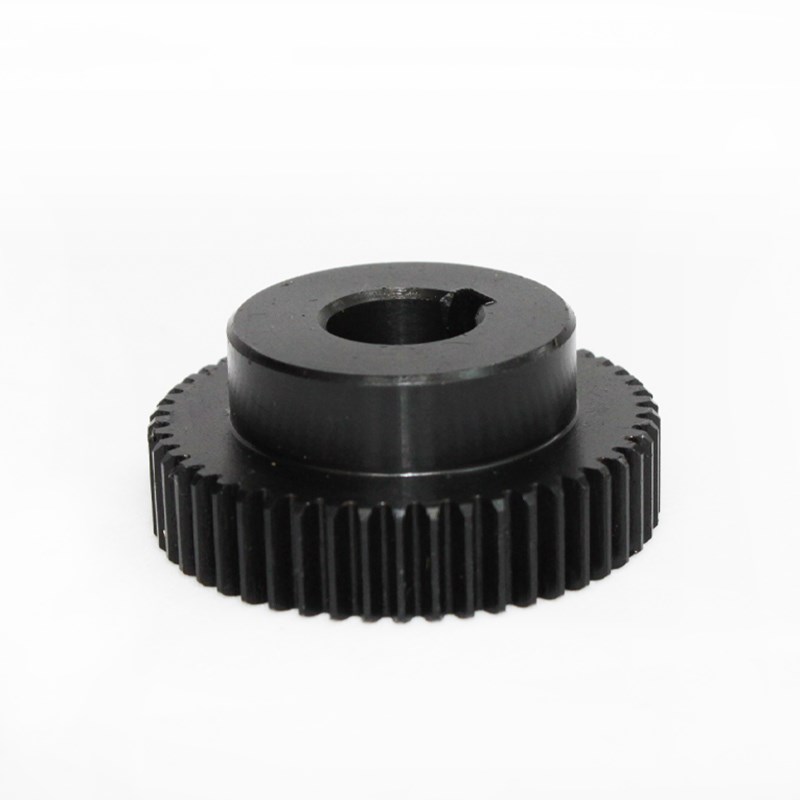

Beyond high-difficulty large prime gear hobbing, Gearseiko supports one-stop full-process precision gear manufacturing services covering all working procedures. Our business covers fine pitch miniature gears to large heavy-duty industrial gears, adapting to spur gear and helical gear structural forms. Core processing services include gear hobbing, gear grinding, gear shaving, CNC gear milling and custom gear prototype production. We support both standard mass production and ODM&OEM non-standard customized services to meet diversified transmission needs of global customers.
Conclusion
Large prime gear hobbing represents the top processing level of gear hobbing technology. Its machining difficulty lies not in cutting operation itself, but in precise indexing ratio matching and real-time error compensation aiming at indivisible prime numbers. Relying on dual differential compensation technology and professional engineering algorithm support, Gearseiko perfectly solves the long-standing industry problem of difficult processing of gears with over 100 prime teeth.
We break through the limitation of conventional hobbing machines, stably supply high-precision large prime gears for high-end equipment fields, and provide full-life-cycle technical support from parameter calculation, process debugging to finished product testing. Choose Gearseiko for complex special gear machining to eliminate manufacturing precision risks fundamentally.
Overcome prime gear hobbing barriers with professional differential compensation technology, delivering ultra-precise transmission gears for extreme industrial scenarios.
FAQ | Large Prime Number Gear Hobbing Technical Q&A
Q1: Why are large prime gears with over 100 teeth hard to machine?
A1: Prime numbers cannot be factored, so conventional change gear combinations cannot match the required indexing ratio. Standard hobbing machines have no supporting dedicated change gears for large prime teeth, leading to severe indexing errors without compensation solutions.
Q2: What is the working principle of single differential compensation for prime gear hobbing?
A2: It adopts alternative factorable virtual tooth count for preliminary gear matching, and the built-in differential gear train automatically compensates the residual indexing error generated by virtual tooth count replacement during hobbing.
Q3: What are the advantages of Gearseiko double differential hobbing system?
A3: It cuts half of change gear usage, shortens setup time, boosts production efficiency by 40%, controls cumulative indexing error within 0.005mm, and covers all tooth counts up to 250 teeth.
Q4: What industries need large prime gears most?
A4: Aerospace equipment, marine propulsion systems, wind power generation devices, high-precision machine tools and robotic precision reducers, which require low resonance and high stability transmission.
Q5: What is the difference between small, medium and large prime gears in processing?
A5: Small prime gears adopt integer multiple gear matching; medium prime gears use factory-equipped special change gears; large prime gears need single/double differential error compensation for qualified indexing.
Q6: Can Gearseiko provide custom calculation service for prime gear hobbing parameters?
A6: Yes. Our professional engineering team provides one-to-one exclusive change gear ratio calculation and differential parameter debugging services for all kinds of non-standard prime tooth gears.
