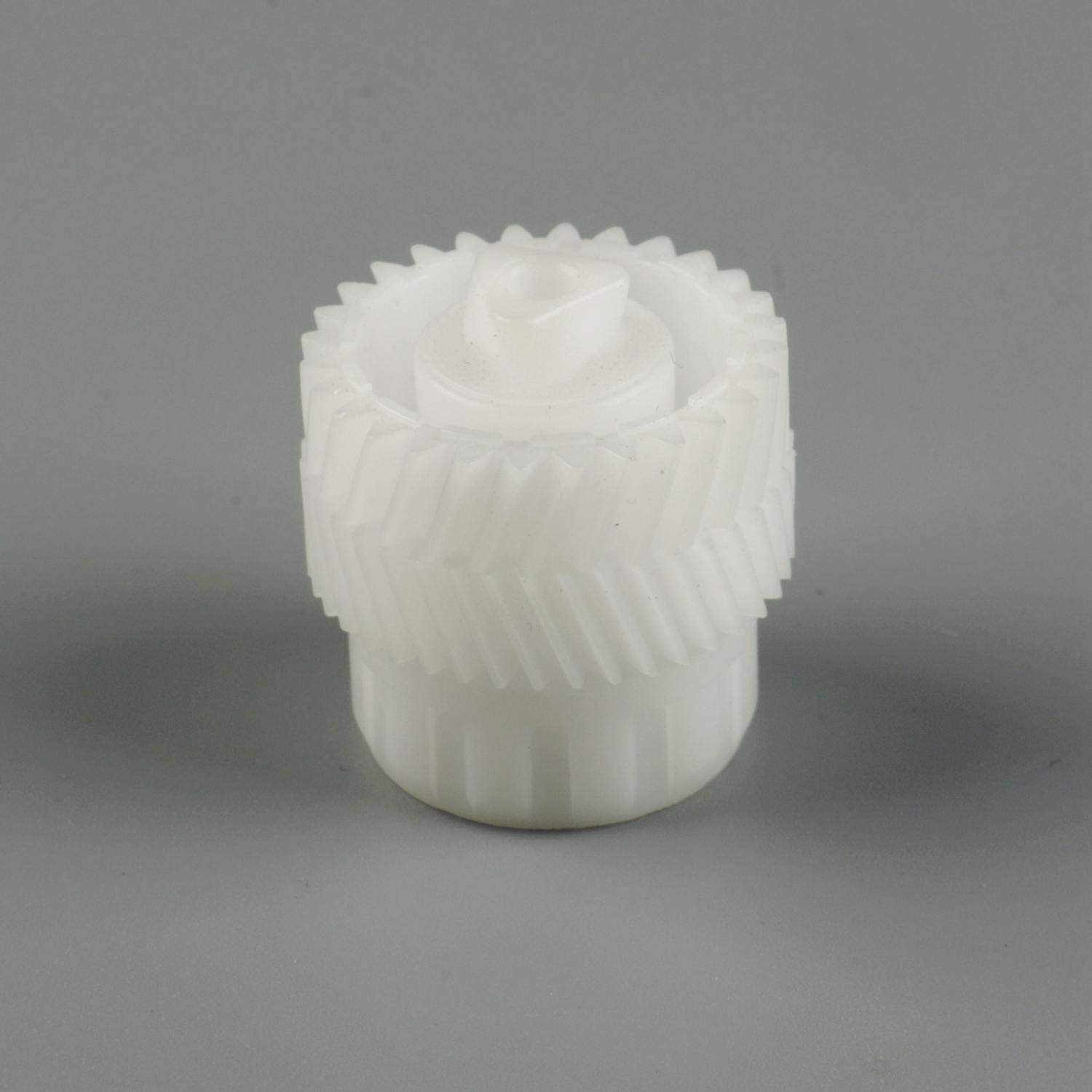

White POM Gears: The Precision Heart of Modern Printing Presses – How Gearseiko Redefines Print Accuracy with Material Science

Inside a high-speed printing press, every micron of error can translate to dot gain, misregistration, or color distortion. For businesses pursuing ultimate print quality, the precision and reliability of the gear system directly determine the perfection of the final output. Gearseiko, a leader in the field of high-end precision gear manufacturing, understands this core demand intimately. With our specially developed white POM (Polyoxymethylene) gears and pinions for printing press applications, we provide the modern printing industry with a silent, durable, and highly accurate transmission solution.

Why White POM is the Ideal Choice for Precision Printing Gears?

POM material, especially the premium white grade we select, possesses a unique combination of properties that perfectly meet the stringent requirements for transmission components in printing machinery:

Exceptional Dimensional Stability & Low Moisture Absorption
Humidity fluctuations are common in pressrooms. Metal gears are prone to corrosion, while ordinary plastic gears can swell from moisture absorption, affecting precision. White POM gears have extremely low water absorption (typically <0.3%), maintaining dimensional stability amidst temperature and humidity changes, ensuring long-term registration accuracy.

Self-Lubrication & Low Wear Rate
POM material possesses natural lubricity, significantly reducing the coefficient of friction during gear meshing. In high-speed, continuously running presses, this means less energy loss, lower noise (reducing by 10-15 dB compared to metal gears), and extended service life, minimizing the risk of lubricant contamination on substrates.

High Rigidity & Fatigue Strength
Although an engineering plastic, white POM gears offer rigidity close to that of metal, capable of withstanding the shock loads during press start-stop cycles and long-term cyclic stress. Their fatigue resistance ensures the gear tooth profile remains intact after millions of cycles, preventing sudden failure and production downtime.

Cleanliness & Chemical Resistance
White POM is not only visually clean but also less prone to generating micro-debris, avoiding contamination in the precision printing environment. It also exhibits good resistance to common chemicals like inks and cleaning solvents, extending service life in harsh operating conditions.

Key Applications and Advantages of Gearseiko White POM Gears in Printing Presses

1. Sheet Feed and Transfer System Gears
The smooth and precise paper transfer is critical in high-speed presses. Our white POM gears, used in transfer cylinder drive systems, effectively absorb minor vibrations during paper transfer with their damping characteristics, preventing paper slip or wrinkling. The specialized design of the pinions ensures radial runout is controlled within 0.01mm, guaranteeing timing accuracy for sheet transfer.

2. Ink Roller and Dampener Drive Gears
The ink-water balance in offset presses is crucial for print quality. Gearseiko's POM gears excel in ink train drives, their stable transmission ratio ensuring even ink distribution, while the material's corrosion resistance withstands long-term exposure to fountain solution. Compared to traditional metal gears, their lightweight property reduces inertia, enabling quicker roller response.

3. Register System Micro-Pinions
In multi-color printing, registration accuracy often hinges on micro-adjustment mechanisms. Our POM pinions, with diameters as small as 3mm, are manufactured using single-cavity precision injection molding technology, achieving a roundness of ISO Grade 5 (equivalent to DIN Class 3), ensuring absolute accuracy in color superposition. The white material facilitates visual inspection and maintenance.

4. Folding and Cutting Unit Drive Systems
The post-press finishing stages demand extreme synchronization. Our gear systems demonstrate outstanding performance in high-speed folders. Their inherent damping properties absorb mechanical shock, protecting the cutting system; the low coefficient of thermal expansion prevents accuracy drift after prolonged operation.

The Gearseiko Manufacturing Philosophy: Where Material Science Meets Precision Engineering

The gear solution provided for our French printing press partner exemplifies Gearseiko's core competencies:

Customized Material Formulation
We do not use generic POM compounds. In collaboration with top chemical suppliers, we adjust polymer chain structures and additive packages specifically for pressroom conditions like high-frequency vibration and intermittent shock, enhancing anti-creep and wear resistance metrics.

Precision Mold Manufacturing
Gear accuracy originates from the mold. Gearseiko employs Swiss precision machining to manufacture gear molds, achieving cavity accuracies of ±0.002mm. Air-assisted ejection technology ensures distortion-free demolding of thin-walled pinions.

Full-Process Quality Control
From raw material inspection to optimized injection molding parameters (utilizing scientific molding methods with precise melt temperature and packing pressure control), to 100% tooth profile inspection and noise testing, each gear passes through 23 quality checkpoints. Our unique white formulation includes traceable elements, allowing clients to authenticate genuine components.

Application Engineering Support
We supply more than just gears; we provide drive system optimization. For our French client's press design, our engineers participated in the gearbox redesign for vibration reduction, decreasing transmission error by 42% through customized tooth profile modifications (like tip and root relief).

Success Story: Empowering a French High-End Press Manufacturer to Capture Market Share

After implementing Gearseiko's white POM gear systems, our French printing press manufacturing partner reported significant competitive advantages for their flagship model:

• Enhanced Reliability: Mean Time Between Failures (MTBF) for the gear system increased from 8,000 to 18,000 hours.

• Reduced Maintenance Costs: Lubrication intervals extended by 3 times, replacement cycles lengthened by 2.5 times.

• Validated Print Quality: In ISO 12647-2 print standard tests, registration stability improved by 37%.

• Market Feedback: End-users particularly appreciated the improved working environment due to significantly reduced operational noise.

Conclusion: Choosing Gears is Choosing Productivity

In an era of rapid advancement in printing technology, innovation in transmission components often becomes the key to breakthrough equipment performance. Gearseiko's white POM gears and pinions represent a smarter, cleaner, and more enduring philosophy of precision transmission. We believe the best gears should not merely be mechanical parts, but silent, reliable partners in productivity—this is the value we deliver to high-end equipment manufacturers worldwide.

The next time you admire a brilliantly colored, perfectly registered print, remember the silent contribution Gearseiko precision gears may have made. We look forward to collaborating with more printing press manufacturers who pursue excellence, jointly pushing the boundaries of precision in the printing industry.

Gearseiko – Precision in Motion, Silent Excellence
This article is supported by the Gearseiko Engineering Team. Data is based on actual application testing. Product specifications can be customized for specific press models.
