Numerical Simulation of Nonlinear Random Parameter Vibrations in Precision Gears: Gearseiko’s Advanced Manufacturing Breakthrough

In high-performance drivetrain systems, gear vibration behavior directly impacts equipment precision, service life, and noise performance. Traditional vibration analysis often assumes system parameters are deterministic or vary harmonically. However, in real-world operating conditions—especially for high-end precision gears—parameters such as stiffness, damping, mass distribution, and tooth contact conditions exhibit significant randomness. When this randomness couples with inherent nonlinearities in gear transmission (e.g., backlash, time-varying meshing stiffness, friction hysteresis), the dynamic response becomes extremely complex and difficult to obtain reliably through analytical methods.

As a manufacturer specializing in high-end precision gears, Gearseiko employs numerical simulation of nonlinear random parameter vibrations as a core R&D tool. This article details the fundamental principles, implementation workflow, and engineering value of this method.

1. Why Random Parameter Vibrations Matter for Gears

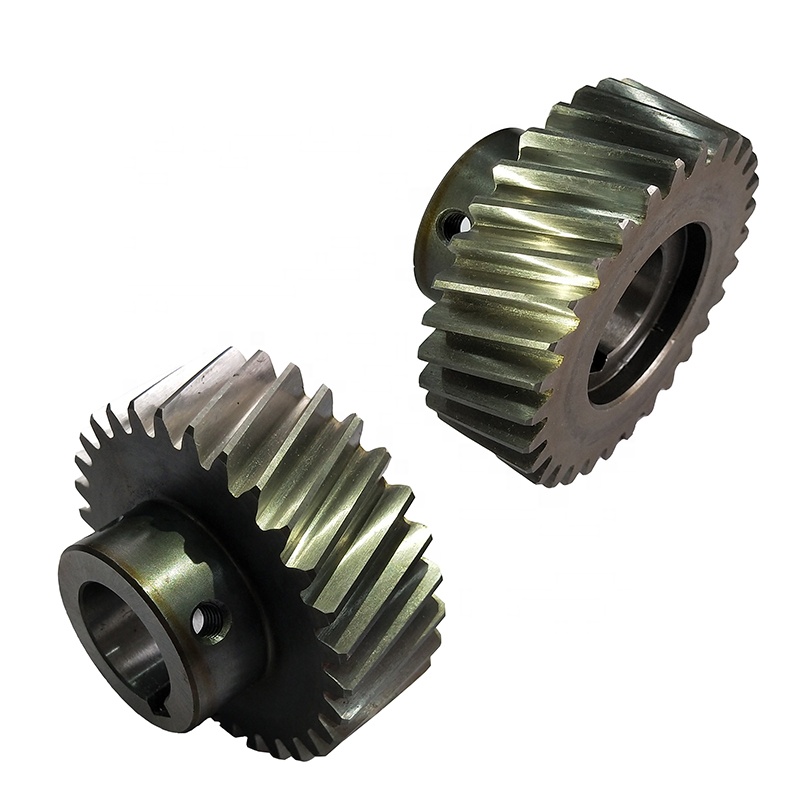

For precision gears, random parameters originate from multiple sources:

• Manufacturing and assembly tolerances: Tooth profile deviations, cumulative pitch errors, shaft parallelism deviations – these parameters follow statistical distributions.

• Material property variations: Elastic modulus, density, internal damping vary across batches and temperature fields.

• Operating condition uncertainties: Load fluctuations, speed drift, lubrication state changes.

When a gear system runs at high speed, fluctuations in these random parameters cause unpredictable variations in vibration amplitude and frequency spectra. Designing gears with only deterministic models often underestimates peak dynamic loads, leading to early fatigue failure or abnormal noise. Therefore, numerical integration‑based random parameter vibration simulation is essential.

2. Theoretical Foundation of the Numerical Integration Method

In the field of nonlinear random parameter vibration analysis, numerical integration is widely recognized as the most effective and versatile approach. Its core concept consists of three steps:

2.1 Time‑Domain Sampling and Arrangement of Random Parameters

Treat the gear system’s random parameters (e.g., single‑tooth meshing stiffness, tooth surface friction coefficient, damping ratio) as time‑varying stochastic processes. By sampling these parameters at different time instants and arranging the sampled values along the time axis, a time‑domain sample function of the random parameter is generated.

For example, when Gearseiko performs dynamic analysis of a gearbox, it converts measured tooth surface roughness power spectral density into a random sequence, then samples it at specific time intervals to construct a stiffness time history covering hundreds of thousands of meshing cycles.

2.2 Feeding Time‑Domain Samples into the System and Numerical Integration

After obtaining the time‑domain samples of the random parameters, they are substituted into the nonlinear differential equations of motion of the gear system. At this point, the equations no longer contain stochastic symbols but become deterministic equations with time‑varying coefficients. Numerical integration methods (such as the Newmark‑β method or fourth‑order Runge‑Kutta method) are then used to progressively compute the system’s displacement, velocity, and acceleration response histories.

Gearseiko’s simulation platform supports parallel computing, completing tens of millions of integration steps within hours, thereby capturing instantaneous vibration peaks caused by random parameter fluctuations.

2.3 Obtaining Statistical Characteristics Under the Ergodicity Assumption

In actual gear operation, the statistical properties of random parameters usually remain stable over time. Under the ergodicity assumption, a sufficiently long time response history can represent the statistical behavior of the entire random process. Therefore, we simulate a sufficiently long time window (e.g., 10⁶ gear rotation cycles) and then statistically analyze that time history to obtain key indicators: root‑mean‑square values, probability density functions, autocorrelation functions, and power spectral densities.

3. Gearseiko’s Implementation Workflow for Numerical Simulation

To transform the above theory into engineering productivity, Gearseiko has established a standardized six‑step simulation process:

1. Random parameter modeling: Based on measured data from over 5,000 gears on our production line, we establish probability distributions (normal, Weibull, or custom) for each random parameter.

2. Monte Carlo sample generation: Using Latin Hypercube sampling, we generate 200–500 independent time‑domain sample sets of the random parameters, ensuring coverage of boundary conditions of actual fluctuations.

3. Time‑domain sequence arrangement: The sampling time step is determined as an integer fraction of the gear meshing frequency. The minimum integration step is typically set to 1/100 of the meshing period to preserve high‑frequency vibration components.

4. Nonlinear numerical integration: Using Gearseiko’s proprietary high‑precision solver, we perform transient dynamic analysis for each sample. The solver automatically detects tooth surface contact state transitions and gap impacts.

5. Statistical post‑processing: All sample response time histories are ensemble‑averaged to calculate mean response, variance, crest factor, and exceedance probability curves.

6. Validation and calibration: Simulation‑derived vibration statistics are compared with actual gearbox test rig measurements, adjusting correlation lengths and distribution parameters of the random variables.

4. Typical Application Case

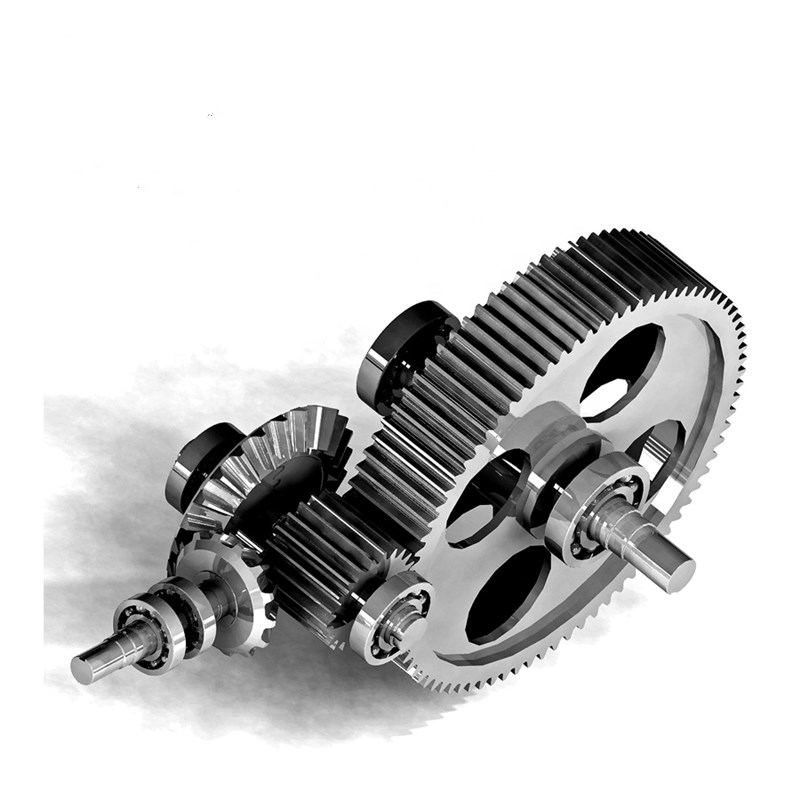

Take the high‑precision gears that Gearseiko developed for an electric heavy‑truck reduction gearbox:

• Problem: In the 800–1200 rpm speed range, the original design exhibited unpredictable vibration and noise, and some prototypes developed early pitting on tooth flanks during durability tests.

• Deterministic analysis: Traditional harmonic response analysis predicted vibration levels far below measured values and could not explain the randomly occurring peaks.

• Random parameter numerical simulation: Introducing random fluctuations in pitch deviation and single‑tooth stiffness (standard deviation 3% of the mean), 500 response histories were obtained via numerical integration. Results showed that 5% of the samples had dynamic load peaks 40% higher than deterministic predictions.

• Solution: Gearseiko optimized tooth profile modification parameters, reducing sensitivity to random parameters by 60% while narrowing the variation range of material damping. Re‑simulation showed the exceedance probability of peak loads dropped below 0.5%.

• Validation: The improved gears passed a 2000‑hour full‑load durability test, with RMS vibration acceleration reduced by 27%.

5. Advantages and Challenges of the Numerical Integration Method

Compared to perturbation methods, stochastic finite elements, or polynomial chaos expansion, numerical integration‑based random parameter vibration simulation offers significant advantages:

• Strong applicability: Can handle almost any complex nonlinear model (backlash, time‑varying stiffness, friction nonlinearity).

• No assumption on response distribution: Directly obtains complete probabilistic information of the response, not just mean and variance.

• Easily parallelizable: Integration of each sample is independent, making full use of high‑performance computing clusters.

Of course, the method also faces the challenge of relatively high computational cost. Through adaptive step‑size integration, GPU acceleration, and intelligent truncated sampling strategies, Gearseiko controls the simulation time for typical gear models to 4–8 hours, meeting engineering iteration requirements.

6. Gearseiko’s Technical Commitment

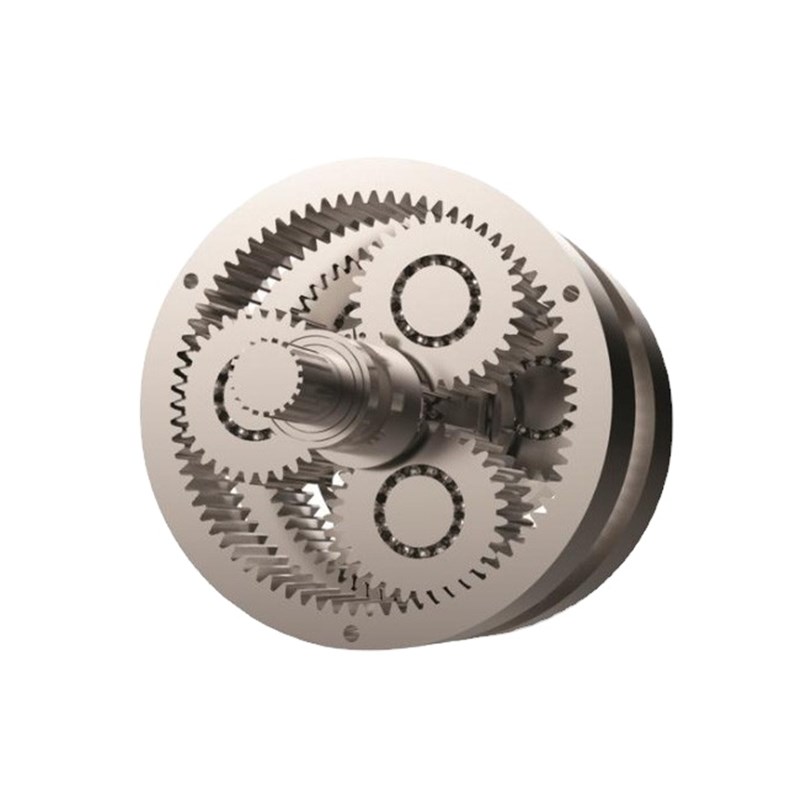

By deeply integrating numerical simulation of nonlinear random parameter vibrations into the gear development process, Gearseiko offers customers:

• More realistic dynamic load spectra for accurate fatigue life assessment

• Robust design optimization against random fluctuations, reducing field failure rates

• Traceable vibration risk probability indicators to support maintenance decisions

• Shortened prototype testing cycles by more than 30%

We firmly believe that the future of high‑end precision gears lies in the combination of probabilistic design thinking and high‑fidelity numerical simulation. Gearseiko not only manufactures gears but also uses advanced numerical simulation to ensure that every gear maintains predictable, excellent performance in a random real‑world environment.

If you are struggling with vibration issues in your drivetrain system, please contact the Gearseiko engineering team. We will provide you with in‑depth analysis based on random parameter vibration numerical simulation, working together to create quieter, more durable, and more reliable gear drive solutions.

Gearseiko – Leader in Probabilistic Engineering for Precision Gears
