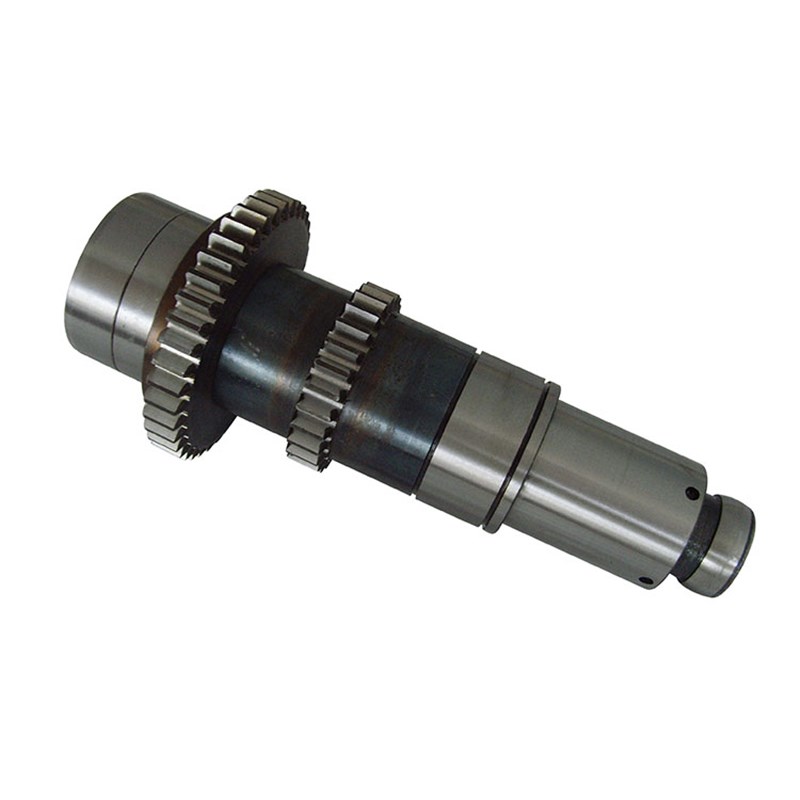

Metal Steel Precision Transmission Drive Planetary Reduction Spur Gear Shaft

High-Precision Steel Low Gear Shafts: The Core Power Behind Reducer Performance

In mechanical drive systems, reducers play a critical role in reducing speed and increasing torque. At the heart of torque transmission lies the low gear shaft – a load‑bearing component whose manufacturing precision and material quality directly determine the reliability, service life, and operational efficiency of the entire reducer. For the demanding European mechanical transmission market, choosing a truly robust precision gear shaft is not an option but a necessity.

Material: Steel – More Than a Choice, It’s a Commitment

The material of a gear shaft dictates its strength, wear resistance, and fatigue life. Among all options, high‑grade steel stands out for its superior mechanical properties, making it the preferred choice for high‑end reducer gear shafts. The low gear shafts we produce at Gearseiko for our European customers are machined from rigorously selected alloy structural steels – such as 42CrMo4, 20MnCr5, and other high‑purity grades. These steels undergo precise chemical composition control and vacuum degassing, significantly reducing internal inclusions and segregation, laying a solid foundation for subsequent heat treatment and tooth profile machining.

Through advanced case‑hardening processes like controlled‑atmosphere carburizing and carbonitriding, the tooth flanks achieve a uniformly deep hardened layer with a hardness of 58–62 HRC, while the core retains excellent toughness. This “hard outside, tough inside” characteristic enables the gear shaft to resist tooth pitting and wear under high loads and impact stresses, while preventing shaft fracture under alternating loads.

Key Role in Reducers: The Heart of Power Transmission

The low gear shaft typically serves as the input or intermediate shaft in a reducer, meshing directly with gear pairs to smoothly transfer the motor’s speed and torque to the next gear stage. In multi‑stage reducers, the low gear shaft often endures the highest speeds and most complex stress distributions. Consequently, its tooth profile accuracy, journal roundness, coaxiality, and surface finish directly affect the reducer’s backlash, vibration, noise, and temperature rise.

Gearseiko manufactures low gear shafts using CNC form gear grinding and worm‑wheel grinding processes, achieving tooth profile accuracy stable to Grade 5 or even Grade 4 per ISO 1328:2013. At the same time, the journal sections are precision ground, with cylindricity controlled within 3 µm. Such levels of precision ensure low vibration and low noise even at high rotational speeds, greatly extending the life of reducer bearings and seals.

Operational Advantages: Reliable, Efficient, and Durable

1. High Load‑Carrying Capacity
   Thanks to premium steel and controlled heat treatment, the gear shaft’s contact fatigue strength and bending fatigue strength are significantly enhanced. For the frequent start‑stop and overload conditions common in European drive equipment, our products demonstrate an ample safety margin.

2. Excellent Wear Resistance
   Precision‑ground tooth flanks combined with a dedicated superfinishing process achieve a surface roughness of Ra 0.2–0.4 µm. This effectively reduces early‑stage wear and maintains a stable tooth profile over long‑term operation.

3. Strict Geometric Consistency
   Each gear shaft is fully inspected using a Zeiss CMM and a Klingelnberg gear measuring center, ensuring batch‑to‑batch consistency and interchangeability. For our European customers’ requirements – including full dimensional reports and PPAP documentation – we provide complete, traceable data packages.

4. Cost‑Effective Customization Capability
   As a manufacturer focused on high‑end precision gears, Gearseiko specializes in small‑to‑medium batches, high‑mix, high‑specification gear shaft orders. Working in close technical collaboration with European customers – from prototype sampling to mass production – we respond quickly to design changes and significantly shorten lead times.

Built for the European Market – Safeguarding Transmission Quality

The low gear shafts we supply in volume to a well‑known European mechanical transmission company have exceeded 150,000 delivered units, with an assembly pass rate of over 99.85% and no early‑life failures in the customer’s end equipment. This not only validates Gearseiko’s process stability but also demonstrates the competitiveness of Chinese precision manufacturing in the global high‑end supply chain.

If your reducer project is looking for a steel, high‑precision, high‑reliability low gear shaft, we invite you to discuss technical solutions with us. Gearseiko – Driving the future with gears.
