In the field of high-end precision manufacturing, dimensional tolerances are regarded as the hidden standard that decides overall product quality. Most engineers and buyers tend to focus only on explicitly marked tolerance grades on engineering drawings, while easily misunderstanding untoleranced dimensions as non-required and negligible.
In actual gear production and application, untoleranced dimensions play an equally vital role. As a professional manufacturer specializing in high-end precision gears, Gearseiko deeply recognizes that the long-term stable performance of gear transmission systems depends not only on key strictly toleranced parameters, but also on standardized manufacturing norms and rational engineering design behind general untoleranced dimensions. Today we elaborate on the practical application and core significance of general tolerances in precision gear machining.Explore Gearseiko standardized tolerance management and high-stability precision gear manufacturing solutions here.

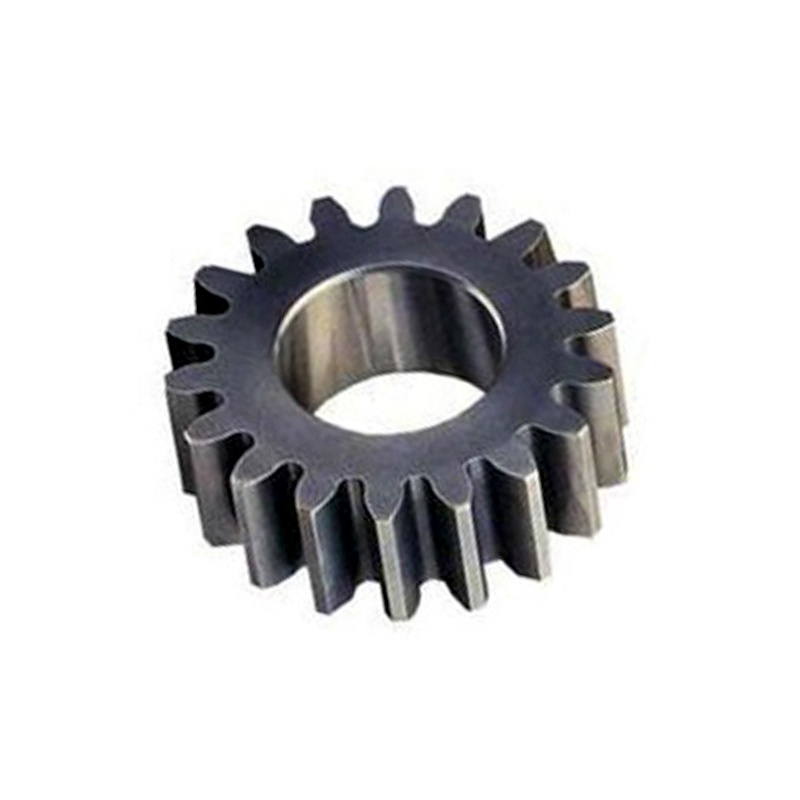

1. General Tolerances: Universal Standard Instead of No Restrictions
In daily precision gear production, Gearseiko widely applies general linear dimension tolerances to multiple machining procedures including gear turning, hobbing and grinding, as well as conventional stamping processes. Meanwhile, we unify the same tolerance standards for non-metallic gear accessories such as nylon noise reduction components and powder metallurgy parts to realize consistent full-process quality control.
Many clients hold the wrong view that unmarked tolerance dimensions can be processed randomly without restrictions. In fact, untoleranced dimensions never mean no quality requirements. They are designed to simplify drawing layout and improve reading efficiency, while unified general tolerance rules are clearly specified in technical specifications and internal enterprise standards.
Gearseiko strictly implements international mainstream standards ISO 2768 and DIN 7168, setting definite and reasonable tolerance deviation ranges for all untoleranced dimensions to ensure consistent processing quality.
2. Reasonable Application of General Tolerances: Balance Functional Performance and Production Cost
According to actual assembly and service requirements of gear parts, Gearseiko forms clear application strategies for general tolerances in practical projects.
Prioritize General Tolerances for Non-fitting Low-precision Dimensions
For structural supporting and positioning dimensions that will not affect gear meshing accuracy and have no strict assembly matching demands, such as gear web thickness and counterbore depth, we adopt general tolerances preferentially when functional allowable deviation is within standard range. This effective avoids excessive redundant finishing work, cuts unnecessary production costs for clients while fully guaranteeing basic structural performance and operational reliability.
Mark Strict Specific Tolerances on Core Functional Dimensions
For key dimensions closely related to gear assembly precision, dynamic balance operation and overall service life including bearing mounting hole diameter and concentricity between addendum circle and reference axis, we formulate higher precision requirements beyond general tolerance range, and clearly mark standard tolerance grades such as H7, h6 or accurate limit deviation values on drawings. We always stick to the core manufacturing principle: tighten tolerance on core positions and keep reasonable allowance on ordinary structures.
Optimize Looser Tolerances for Cost-effective Structural Dimensions
For partial non-functional dimensions such as weight reduction blind holes and internal lubrication channel depth that bear no assembly and meshing load, Gearseiko actively communicates with customers to formulate wider reasonable deviation ranges properly. This effectively reduces processing difficulty, lowers production scrap rate and achieves win-win optimization of technical performance and economic benefit.
3. Scientific Inspection Specification: Stable Process Control plus Complete Quality Traceability
Industry standards usually point out that general tolerance items do not need full-range repeated inspection. Gearseiko carries out more rigorous and practical quality management modes on this basis.
Under stable workshop production conditions with CNC equipment processing capability CPK ≥ 1.33, we do not implement 100% full inspection on all general tolerance dimensions. All quality control work is based on stable process system: regular batch sampling inspection, first piece confirmation verification and real-time equipment performance monitoring ensure all untoleranced dimensions always stay within qualified tolerance scope. Once tool replacement, fixture adjustment and other process changes occur, we will immediately conduct comprehensive re-verification to eliminate hidden quality risks.

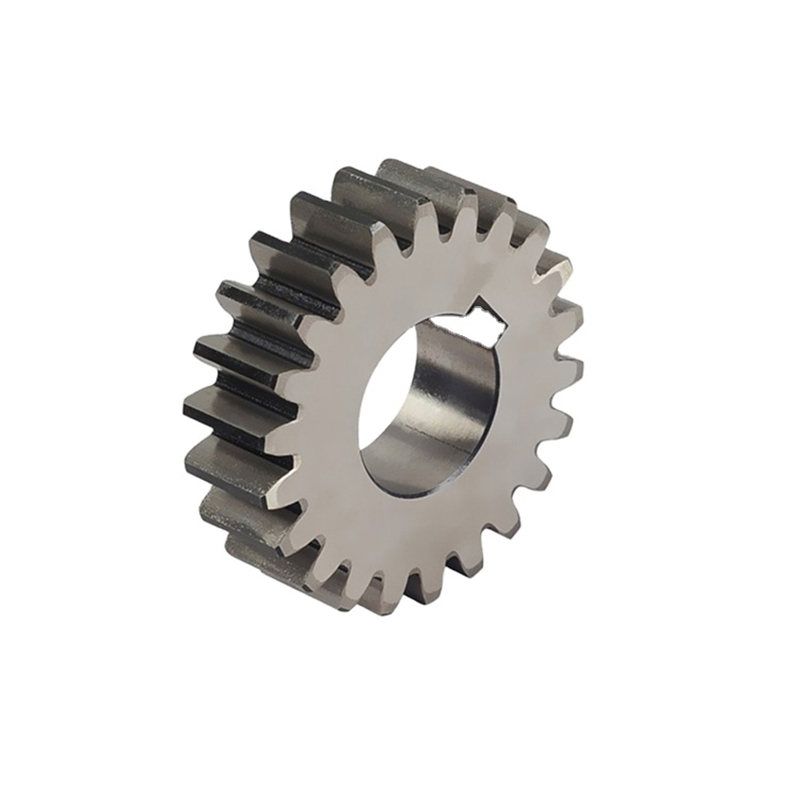

4. Unified Tolerance Definition for Cross-process Machining Surfaces
Precision gear manufacturing usually combines multiple forming and finishing processes such as precision forging, casting and tooth cutting. When one single gear part contains machining surfaces finished by different processes, Gearseiko follows unified practical judgment criteria for general dimensional tolerances.
We select the larger tolerance standard among different process allowable deviations as the final execution rule. For example, common turning process can reach ±0.1mm tolerance while casting process is limited within ±0.5mm; for the overall linear dimension spanning casting datum and cutting positioning surface, we uniformly adopt ±0.5mm general tolerance. This formulation fully conforms to inherent precision limits of different production processes, avoids unrealistic overstrict tolerance requirements and effectively controls production qualified rate.Learn more about Gearseiko multi-process combined gear machining and standardized tolerance control technology here.
5. Gearseiko Core Quality Concept: Standardize Untoleranced Dimensions to Build Stable Reliability
Serving global high-end gear transmission markets, Gearseiko takes systematic general tolerance management as an indispensable core part of complete quality assurance system. We clearly mark general tolerance execution standards such as General tolerances for linear dimensions according to ISO 2768-m on official drawings and technical cooperation documents, and take the initiative to interpret tolerance design logic and formulation basis for every partner.
We firmly believe that professional gear manufacturing never blindly pursues ultra-high full-scale precision, but realizes perfect balance among structural function, production cost and actual processing feasibility. The plain and practical general tolerance rule is exactly the best embodiment of this mature design and production philosophy.
If you are searching for a reliable precision gear supplier with professional tolerance design capability and complete quality management system, feel free to contact Gearseiko professional engineering team. We deliver not only finished gear products, but also transparent, standardized and highly practical overall precision matching solutions.
FAQ: General Tolerance Application for Precision Gears
Q1: Are untoleranced gear dimensions allowed to be processed randomly?
A1: Definitely not. Untoleranced dimensions follow unified general tolerance standards such as ISO 2768 and DIN 7168, with fixed qualified deviation ranges, which are universal basic manufacturing requirements rather than unrestricted processing standards.
Q2: When should general tolerances be adopted in gear design?
A2: It is suitable for non-core structural dimensions without strict assembly matching and meshing precision requirements, which can save production cost while meeting basic usage performance.
Q3: Does Gearseiko need full inspection for all general tolerance dimensions?
A3: Under stable production process, regular sampling and process monitoring are adopted instead of 100% full inspection; comprehensive re-inspection will be carried out once the production condition changes.
Q4: How to confirm general tolerance across different gear machining processes?
A4: Adopt the larger tolerance value matching the process precision limit, conform to actual production capacity and avoid unqualified products caused by unreasonable tolerance setting.
Conclusion
Explicit marked tolerances control core gear meshing performance, while standardized general untoleranced dimensions determine overall batch stability and long-term operational reliability. Rational tolerance classification and scientific execution standards have become essential technical advantages for high-end precision gear manufacturing.
Gearseiko always adheres to refined tolerance management from drawing design to finished product delivery, balances precision, cost and practicability in all links, and provides global customers with high consistency, high reliability and cost-effective custom precision gear products.
