Precision Tooth Length End Relief for Low-Speed Heavy-Duty Gears: Gearseiko’s Reliable Solution for Demanding Drives | Gearseiko

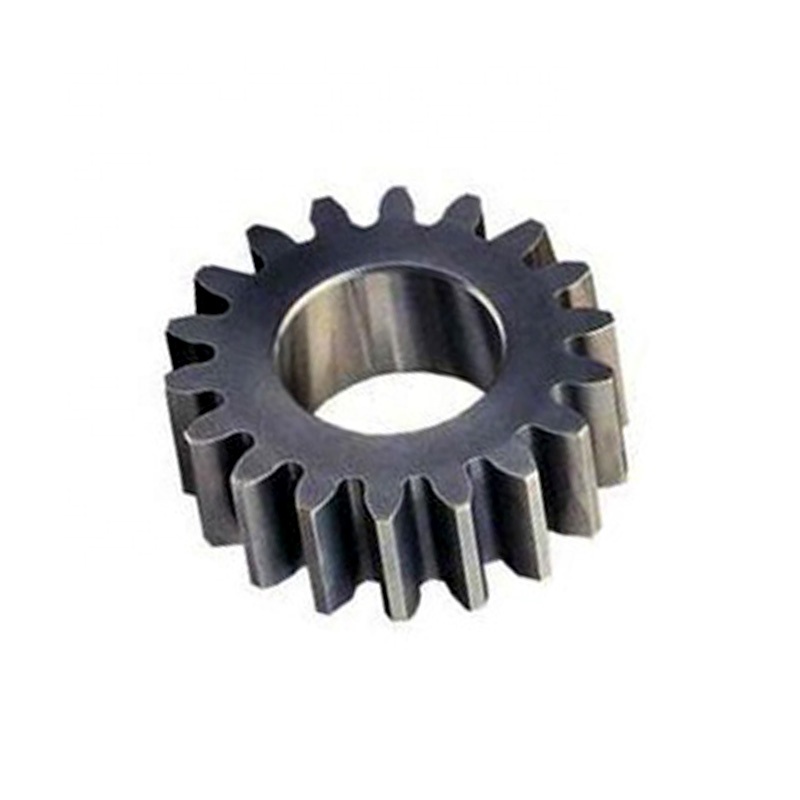

Low-speed heavy-duty gears are core transmission components widely deployed in mining machinery, wind turbine gearboxes, heavy metallurgical equipment and large industrial reducers. Under long-term extreme torque and alternating impact loads, gear tooth edges are prone to concentrated contact stress, excessive tooth root bending fatigue and even catastrophic tooth breakage, severely shortening equipment service life. Optimizing gear flank geometry to boost load capacity and anti-fatigue performance has long been a key technical bottleneck for high-end heavy-load gear production. Tooth length end relief (linear end relief), a delicate yet critical tooth flank geometric optimization process, is Gearseiko’s mature standardized technical solution for all heavy-duty low-speed gear projects.
1. Definition & Core Functions of Tooth Length End Relief
Tooth length end relief, also called linear end relief, refers to gradual material removal and thickness reduction on a narrow section at both ends along the full tooth width. The relieved zones stay completely disengaged during gear meshing. Its core function is to eliminate sharp edge contact induced by gear elastic tilting under heavy loads; such edge contact would otherwise trigger extreme stress concentration at tooth root ends and eventually cause root fracture failure.
Massive mechanical tests and long-term field operation data prove that reasonably designed tooth length end relief delivers multiple prominent performance improvements:
- Eliminates edge contact, homogenizes tooth surface contact stress distribution and cuts tooth root bending fatigue stress;
- Reduces gear transmission error, lowers meshing vibration and running noise;
- Optimizes oil film forming conditions between meshing tooth flanks, upgrades lubrication effect and improves overall transmission efficiency.
For low-speed heavy-load gears enduring continuous heavy impact, tooth end relief becomes an indispensable geometric optimization measure to extend gear service life and avoid sudden breakage faults.
2. Standardized Relief Parameter Specifications of Gearseiko
Gearseiko has formed unified parameter standards for tooth length end relief after summarizing thousands of heavy-duty gear production cases:
- Conventional standard relief amount δ: 0.1 ~ 0.2 mm;
- Standard relief length l: 10 ~ 20 mm;
- High dynamic load working conditions: appropriately enlarge relief depth and length above standard values;
- Ultra-high precision special gears requiring manual finish polishing: relief amount can be adjusted to 0.5 ~ 0.8 mm.
All relief parameters are marked clearly on engineering drawings and strictly implemented by workshop technicians to ensure consistent meshing performance of batch gear products.
3. Two Mature Tooth End Relief Machining Processes Adopted by Gearseiko
We match two independent processing routes according to gear module, precision grade and batch quantity to realize controllable, high-uniformity tooth length end relief forming.
3.1 Secondary Form Cutting with Special Finger-Type Milling Cutter (Core Mass Production Process)
This is Gearseiko’s mainstream high-precision relief forming technology. The relief zone is processed by fine adjusting the helix angle within the target section of tooth width.
- Technicians select matched finger-type milling cutter based on equivalent tooth number of helical gears;
- The cutter feeds symmetrically from the midpoint of tooth width toward both tooth ends, realizing accurate closed-loop control over relief length l and relief depth δ;
- Custom narrow-ground finger cutters are adopted to prevent accidental scratch damage on opposite tooth flanks during position calibration;
- Smooth transitional arc finishing at tooth root eliminates sharp step edges after relief cutting, thoroughly eradicating secondary stress concentration risks at transition zones.
This process features high automation, stable dimensional consistency and high efficiency, suitable for mass production of standard heavy-duty gears.
3.2 Manual Precision Finishing & Integrated Tooth Tip Chamfering (For Ultra-High Precision Custom Gears)
For high-end gears with ultra-stringent meshing smoothness requirements, secondary mechanical cutting is followed by manual fine polishing:
- Adopt soft disc grinding wheel for fine trimming of relieved tooth end areas;
- Wrap grinding wheel spindle with 120-grit abrasive cloth for mirror polishing to remove tiny cutting tool marks;
- After relief forming, use small-diameter helical-edge finger cutters to carry out uniform full-tooth chamfering on tooth tips and sharp edges at both ends;
- Chamfer allowance is unified for every single tooth and marked as mandatory drawing requirement.
This composite process achieves ultra-smooth tooth flank surface and minimal meshing vibration, applied to high-value core gears for wind power and large mining reducers.
4. Gearseiko Full-Process Quality Control for Relief Optimization
Every pair of low-speed heavy-duty gears bears the stable operation safety of customers’ heavy equipment. Gearseiko integrates tooth length end relief design and machining into the full standardized precision manufacturing workflow: from load-based relief parameter calculation, targeted special cutter selection, strict secondary cutting parameter monitoring to meticulous manual polishing and chamfer inspection.
All relief geometric dimensions, tooth flank surface finish and transition arc smoothness are fully inspected before delivery. Our systematic process control avoids uneven relief, insufficient transition smoothness and excessive stress concentration, enabling gears to maintain stable load capacity and long fatigue life under extreme heavy-duty working environments.
Whether you need heavy-duty reducer gears, wind turbine core transmission gears or mining equipment drive gears, Gearseiko’s professional tooth length end relief optimization technology effectively enhances gear comprehensive performance and extends the whole drivetrain service cycle.
Precision tooth length end relief homogenizes contact stress, eliminates edge impact and greatly improves fatigue life of low-speed heavy-duty gears.
FAQ | Tooth Length End Relief for Heavy-Duty Gears
Q1: What failure problems can tooth length end relief solve for heavy-duty gears?
A1: It eliminates edge contact stress concentration caused by gear tilting under load, reduces tooth root bending fatigue, and avoids tooth root fracture and premature gear scrappage.
Q2: What are Gearseiko’s standard parameters for tooth end relief?
A2: Conventional relief depth 0.1–0.2 mm, relief length 10–20 mm; higher dynamic loads adopt larger values, and ultra-precision customized gears reach 0.5–0.8 mm relief depth.
Q3: Why is finger-type secondary milling the core relief processing method?
A3: It realizes symmetric forming from tooth width center to two ends, precisely controls relief size, uses narrow special cutters to avoid flank scratch, and smooth root transition prevents secondary stress concentration.
Q4: When is manual grinding and chamfering required after relief cutting?
A4: For ultra-high precision heavy-duty gears with strict meshing noise and vibration requirements, manual polishing and uniform tooth tip chamfering are added to optimize surface smoothness.
Q5: What performance improvements will end relief bring to gears?
A5: Homogenized contact stress, lower transmission error and meshing noise, better lubrication oil film formation, higher transmission efficiency and longer fatigue service life.
Q6: Can Gearseiko customize exclusive relief parameters according to actual working load?
A6: Yes. Our engineering team calculates matched relief length and depth based on gear torque, rotation speed, load fluctuation and material to realize optimal meshing performance.
