The Precision Code of Gears: Gearseiko Helps You Understand Grinding Processes and Accuracy Grades | Gearseiko
Introduction
Within high-end precision transmission industries, gear accuracy directly governs equipment operating performance, service life and overall operational reliability. Gear grinding serves as the core finishing process for hardened gears and remains one of the most mature and reliable technologies to manufacture high-precision gears.

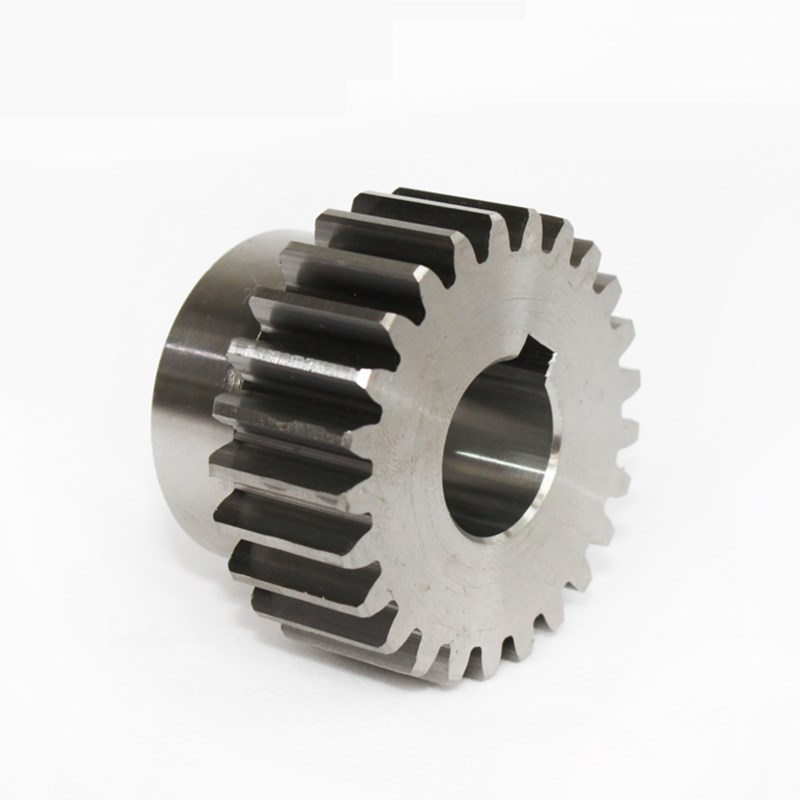

This process can machine both hardened spur and helical cylindrical gears and effectively rectify various geometric errors generated during pre-grinding tooth forming operations. Driven by advances in CNC control, CBN abrasive wheel materials and grinding kinematic principles, modern gear grinding continues advancing toward higher efficiency and superior precision.
As a professional manufacturer of high-end precision gears, Gearseiko integrates mature advanced grinding technologies with rigorous full-chain quality control systems to supply gear products complying with strict international standards. This article systematically interprets gear accuracy grades matched with mainstream grinding processes for engineering reference.
1. Gear Accuracy Grades: International Standard Classification
Gear accuracy classification follows the ISO 1328 standard, which defines accuracy grades ranging from Grade 0 to Grade 12. Grade 0 represents the highest precision, while Grade 12 is the lowest.
In industrial practical applications:
- Grade 0–4: Ultra-high precision gears, widely adopted in aerospace equipment, metrology master gears and precision calibration components;
- Grade 5–6: High-precision gears, mainstream choice for precision machine tools, automotive transmission systems and sophisticated automation equipment.
Different gear grinding technologies have distinct precision limits. Gearseiko sorts out five mainstream grinding processes and their achievable accuracy ranges as follows.
2. Five Mainstream Gear Grinding Technologies and Corresponding Accuracy Capabilities
(1) Disc-shaped Wheel Generating Grinding – Top-Tier Precision Technology
This process uses a pair of disc-shaped grinding wheels following the generating grinding principle with point contact. High-precision notched indexing mechanisms cooperate with steel-band rolling oscillating motion to generate involute tooth profiles. Continuous monitoring and compensation of grinding wheel end face position stabilise relative positioning between wheel and workpiece. Maximum attainable accuracy: Grade 2–3; conventional stable production accuracy: Grade 3–5. Best suited for scenarios requiring extreme ultra-high gear precision.
(2) Large-face Wheel Generating Grinding – Classic Ultra-High Precision Solution
The working end face of a large-diameter grinding wheel simulates one tooth flank of a virtual rack. Gear involute profiles are formed through generating rolling motion. Owing to the large wheel diameter, axial reciprocating movement is unnecessary, enabling simplified machine structure and outstanding precision stability. Maximum attainable accuracy: Grade 1–2 (typical representative: Germany Höfler SRS series grinders); conventional stable production accuracy: Grade 2–4. Primarily applied for finishing gear cutting tools including shaper cutters, shaving cutters and master calibration gears.
(3) Conical Wheel Generating Grinding – Excellent Versatility
The conical grinding wheel corresponds to a single tooth flank of a virtual rack. Generating motion is realised via the machine’s kinematic chain and change gears, delivering strong adaptability for diverse gear specifications. Maximum attainable accuracy: Grade 3 (typical representative: Germany Höfler Nova, Mega, Maxima series); conventional stable production accuracy: Grade 4–6.
(4) Worm Wheel Generating Grinding – High Efficiency for Mass Production
The working principle resembles gear hobbing. The worm-shaped grinding wheel acts as an involute worm, enabling continuous indexing grinding with remarkable productivity. Maximum attainable accuracy: Grade 3–4 (typical representative: Switzerland Reishauer RZ series); conventional stable production accuracy: Grade 4–6. Optimal for low-variety, large-batch gear manufacturing.
(5) Form Wheel Form Grinding – Balanced Precision and Productivity
This is a dedicated form grinding technology, where grinding wheel profiling is the core technical link. Supported by CNC control systems, form grinding technology has achieved rapid development in recent years, combining decent precision and high efficiency suitable for mass production. Maximum attainable accuracy: Grade 2 (typical representative: Switzerland Ewag OPAL420); conventional stable production accuracy: Grade 3–6. Important reminder: Form grinding accuracy is sensitive to ambient temperature and workpiece temperature fluctuation, demanding strict constant-temperature workshop management.
3. Core Factors Influencing Gear Grinding Accuracy
Final grinding precision is not solely determined by the selected grinding process. It is closely affected by grinding parameters, workpiece clamping and centring accuracy, equipment model and machine operating status. Optimised process parameters, precise clamping alignment and well-maintained grinding machines are essential prerequisites for stably producing high-precision gears.
Gearseiko persistently improves grinding processing capacity from three key dimensions:
- Deploy advanced CNC systems to boost automation level and long-term process stability;
- Adopt CBN (cubic boron nitride) grinding wheels. This advanced abrasive material achieves service life 50–100 times longer than conventional alumina wheels. It retains consistent cutting sharpness, generates low grinding heat and avoids tooth surface metallurgical alteration, greatly simplifying precision control;
- Continuously iterate and optimise grinding kinematics and processing routes to lift both machining efficiency and geometric accuracy.
4. Gearseiko’s Manufacturing Philosophy
Whether facing ultra-high precision specifications for aerospace components or high-volume efficiency requirements of automotive transmission production, Gearseiko can select the most appropriate grinding process according to customer application conditions. We supply gears covering accuracy grades from Grade 1 up to Grade 6.
Accuracy grades are far more than numerical indicators. They reflect Gearseiko’s consistent pursuit of manufacturing quality. Partner with Gearseiko for trustworthy precision transmission gear solutions.
FAQ | Gear Grinding Process & ISO Accuracy Grade
Q1: What is the standard for gear accuracy grading?
A1: Gear precision classification follows ISO 1328, ranging from Grade 0 (highest precision) to Grade 12 (lowest precision).
Q2: Which grinding process can reach Grade 1–2 ultra-high precision?
A2: Large-face wheel generating grinding can achieve Grade 1–2 precision, commonly used for master gears and gear cutting tool finishing.
Q3: What are the characteristics of worm wheel grinding?
A3: It adopts continuous indexing processing with high efficiency, stably reaching Grade 4–6 precision, ideal for large-batch standardized gear production.
Q4: Why does form grinding require strict temperature control?
A4: Form grinding accuracy is sensitive to temperature changes of the environment and workpiece. Thermal deformation will directly cause deviations of tooth profile and helix.
Q5: What advantages do CBN grinding wheels have over ordinary alumina wheels?
A5: Longer service life, stable cutting performance, low grinding heat, effectively preventing tooth surface burns and ensuring consistent geometric precision.
Q6: How does Gearseiko choose the corresponding grinding technology for different accuracy requirements?
A6: We match processes based on target accuracy grade, batch volume, gear geometry and application scenarios to balance precision, cost and production efficiency.
