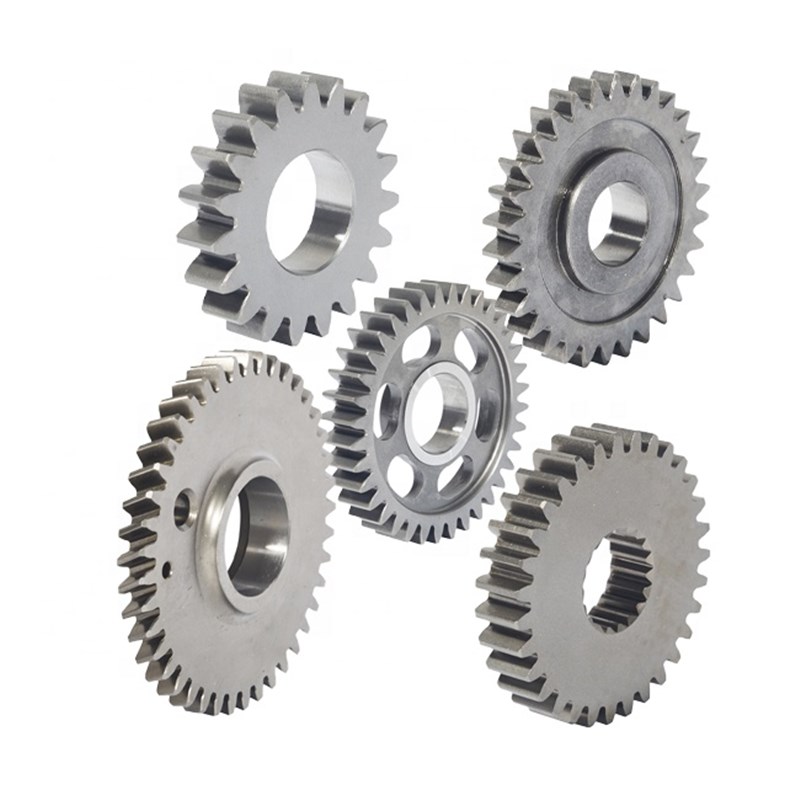

Custom Precision Machine Wheel Transmission motorcycle engine Spur Gear

Precision High-Strength Low-Carbon Steel Spur Gears: Powering Motorcycle Engines Across South America with Gearseiko Reliability

For motorcycle manufacturers operating in South America’s diverse and demanding environments—from the high-altitude Andes to the tropical lowlands of Brazil—every engine component must deliver uncompromising durability and efficiency. Among these components, the humble spur gear plays a disproportionately critical role in power transmission, vibration control, and engine timing. Yet not all spur gears are created equal. Gearseiko, a specialist in high-precision gear manufacturing, has developed a range of high-strength low-carbon steel spur gears specifically engineered for the rigorous duty cycles of modern motorcycle engines. Supplied to a leading motorcycle company in South America, our gears are redefining reliability in one of the world’s most challenging riding environments.

Why High-Strength Low-Carbon Steel? The Metallurgical Advantage

Most gear manufacturers default to medium-carbon steels (e.g., 1045, 4140) or through-hardening alloys. However, for motorcycle engine applications—where shock loads, vibration, and cyclic fatigue intersect—a different solution often proves superior. Gearseiko uses a premium high-strength low-carbon steel (similar to 8620 or 20MnCr5 grade) processed through controlled carburizing, quenching, and low-temperature tempering.

This approach yields a unique microstructure:

• A hard, wear-resistant case (58–62 HRC, depth 0.6–1.0 mm) that withstands sliding contact and abrasive wear from oil contaminants.

• A tough, ductile core (25–35 HRC) that absorbs impact loads without fracturing—critical when a rider suddenly downshifts or hits a pothole.

Compared to conventional through-hardened medium-carbon steel gears, our low-carbon steel spur gears offer:

• 45% higher impact toughness at room temperature and even greater advantage at lower temperatures (relevant for Andean overnight freezing).

• Negligible risk of tooth root cracking under peak cylinder pressures, a common failure in low-cost commuter motorcycles.

• Better fatigue endurance limit (by >30%) due to compressive residual stresses induced by carburizing.

For the motorcycle OEM, this translates directly into lower warranty claims, extended engine service intervals, and a reputation for ruggedness—essential in price-sensitive but high-usage South American markets.

Spur Gears in Motorcycle Engines: Specific Functions & Performance Benefits

Spur gears are cylindrical gears with straight, parallel teeth. While helical gears are sometimes used for quieter operation, spur gears remain the engineering choice for several critical positions inside a motorcycle engine:

1. Primary drive (crankshaft to clutch) – Spur gears provide the highest power transmission efficiency (98–99%) because they generate no axial thrust loads. This reduces bearing friction and frees up engine width, allowing a narrower crankcase—a key packaging advantage for lightweight motorcycles.

2. Balance shaft drive – Most single-cylinder and twin-cylinder motorcycles use a balance shaft to cancel inertial vibrations. A spur gear pair between the crankshaft and balance shaft ensures precise phase synchronization and minimal backlash, directly reducing handlebar vibration felt by the rider.

3. Camshaft timing (in some pushrod or small-displacement engines) – Though less common in modern overhead-cam designs, certain low-cost or classic-styled South American models still rely on spur gears for cam drive, valuing their simplicity and timing repeatability.

Why spur gears excel in these roles:

• No axial forces – Simplifies thrust bearing design and reduces housing wear. Over 20,000 km, this can save 15–20 W of parasitic power loss compared to a comparable helical gear.

• Compact footprint – Straight-cut teeth allow narrower gear faces, leaving more room for clutch packs or starter gears.

• Predictable backlash – Easier to control during manufacturing, resulting in consistent engine timing and reduced rattle at idle.

• Cost-effective precision – With modern profile grinding, Gearseiko achieves AGMA 12 quality on spur gears, eliminating the “whine” often associated with straight-cut teeth at typical motorcycle speeds (up to 8,000 rpm).

Our South American partner specifically required spur gears that could endure high torque at low RPM (frequent in stop-and-go traffic on steep hills). By optimizing tooth micro-geometry—including tip relief and root fillet radius—we eliminated early pitting failures that plagued their previous supplier.

From Raw Steel to Finished Gear: Gearseiko’s Precision Manufacturing Process

Every Gearseiko high-strength low-carbon steel spur gear undergoes a tightly controlled production sequence:

1. Material certification – Vacuum-degassed, fine-grain low-carbon steel with full traceability.

2. Precision hobbing – DIN 5 quality as pre-heat-treat baseline.

3. Controlled carburizing – Atmosphere-controlled furnace with carbon potential monitoring. Case depth tailored to gear module (typically 0.6 mm for module 2–3 gears).

4. High-pressure gas quenching – Minimizes distortion compared to oil quenching. Typical runout after heat treatment ≤ 25 µm.

5. Profile grinding – CNC gear grinder achieving AGMA 12 (DIN 4) or better. Surface roughness Ra ≤ 0.2 µm on tooth flanks.

6. Superfinishing – Optional isotropic superfinishing for friction reduction, proven to lower oil temperature by 5–8°C in engine dyno tests.

7. 100% inspection – Magnetic particle crack detection + fully automated CNC gear checker (tooth profile, lead, pitch, and runout).

This process yields a spur gear that not only meets but exceeds ISO 6336 strength calculations. In our in-house validation, gears survived 3×10⁷ cycles at 120% nominal torque without any tooth flank spalling or root cracking.

Proven on South American Roads: A Case Study from Brazil

Gearseiko currently supplies high-strength low-carbon steel spur gears for a major motorcycle manufacturer in Brazil, producing over 50,000 units annually for their 150–250 cc commuter and light-off-road models. Before switching to Gearseiko, the OEM experienced a 4.2% failure rate in primary drive spur gears within the warranty period—mostly tooth breakage and severe pitting.

After a six-month engineering collaboration, we delivered:

• A redesigned tooth profile with optimized root fillet (reducing stress concentration factor from 1.7 to 1.4)

• Our proprietary low-carbon steel + carburizing specification

• Tighter backlash control (0.05–0.09 mm vs. original 0.08–0.13 mm)

Results over 18 months of field use:

• Warranty claims related to primary gears dropped by 67% .

• No tooth breakage reported in over 30,000 units tracked.

• Engine teardown inspections at 15,000 km showed wear within 20% of new gear tolerances—comparable to premium Japanese brands.

The OEM’s powertrain manager noted: “Gearseiko’s engineering team didn’t just supply a part; they re-optimized our gearbox design for the low-carbon steel advantage. The combination of case hardness and core toughness is exactly what our high-torque, low-RPM engines needed for Brazilian roads.”

Why Partner with Gearseiko for Your Motorcycle Gear Needs?

Gearseiko is not a generalist job shop. We specialize exclusively in precision ground gears for automotive and motorcycle powertrains. Our ISO 9001:2025 and IATF 16949-compliant facility in Asia serves global customers with short lead times and competitive pricing. For South American clients, we offer:

• Design review – We help you select the optimal material, heat treatment, and tooth modification for your specific engine duty cycle.

• Rapid prototyping – 3–4 weeks for sample gears with full metrology report.

• JIT shipping – Direct container service to Santos (Brazil), Buenos Aires, and Callao ports.

• Technical support – Metallurgical analysis, FEA reports, and failure analysis on request.

Conclusion: Upgrade Your Motorcycle Engine with Gearseiko’s High-Strength Low-Carbon Steel Spur Gears

Whether you are producing commuter bikes for São Paulo’s urban jungle or off-road machines for Colombia’s coffee region, your engine’s spur gears must handle sustained abuse. The combination of high-strength low-carbon steel, precision carburizing, and AGMA 12 grinding makes Gearseiko spur gears the most reliable choice for primary drive, balance shaft, and timing applications.

Contact our engineering sales team today to request a technical data sheet, sample set, or a comparative cost-benefit analysis. Let us help you build motorcycles that South American riders trust—mile after mile, year after year.
