Introduction
High-precision gear finishing determines the final dimensional accuracy, surface quality, and comprehensive service performance of industrial gears. As the core final processing procedure for high-end gear manufacturing, gear grinding corrects microscopic geometric errors generated during rough machining, eliminates surface defects, and delivers ultra-precision gears that meet strict tolerance standards.

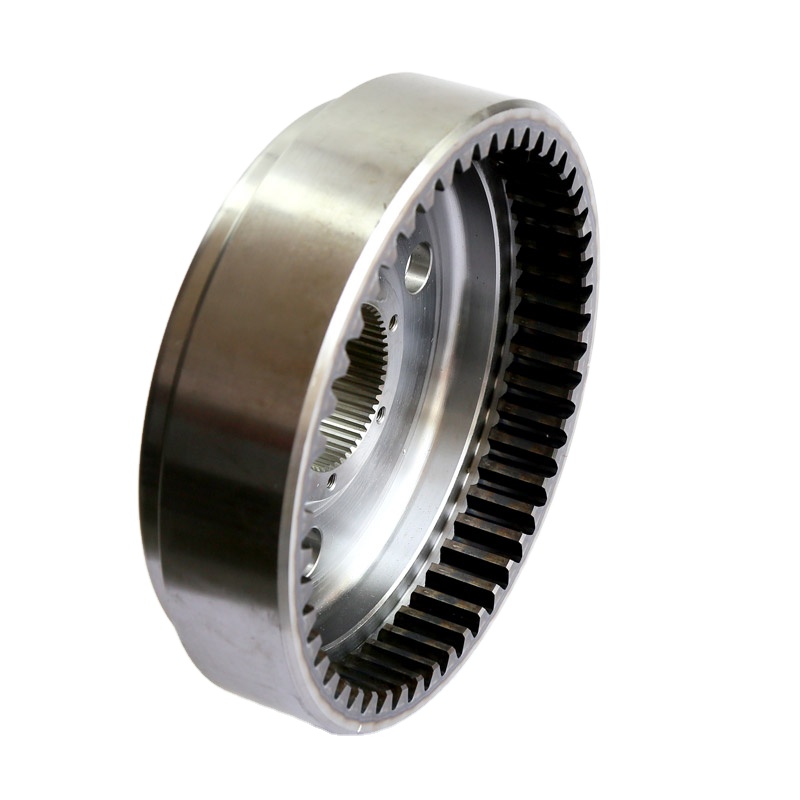

Specializing in ultra-precision gear manufacturing, Gearseiko leverages professional gear grinding technology to break through conventional precision limits. Two mainstream grinding methods dominate the industry: form grinding and generating grinding. Each has unique structural principles, processing advantages and applicable scenarios. This article systematically compares the classification, working mechanisms, technical characteristics and application boundaries of the two grinding processes, providing reliable technical references for high-end gear precision finishing.
1. Classification of High-Precision Gear Grinding Machines
Gear grinding equipment has complete and standardized classification standards in industrial manufacturing. According to the processing object, gear grinding machines are mainly divided into involute cylindrical gear grinding machines and bevel gear grinding machines. The involute cylindrical gear grinder is the most widely used mainstream model in the industry, while bevel gear grinding machines represented by Gleason equipment are specially applied to spiral bevel gear finishing.
Based on the core cutting and motion principle, all gear grinding processes can be categorized into two core types:form grinding and generating grinding. These two technical routes define the precision ceiling, production efficiency and application scope of modern gear finishing.
2. Form Grinding: High-Precision Finishing Through Strict Profile Matching
Form grinding relies on diamond dressers or diamond rollers to trim the grinding wheel into a contour that completely matches the geometric shape of the gear tooth slot. The contoured grinding wheel achieves line contact with the workpiece tooth profile during operation, realizing one-time precision grinding of the full tooth height. It is recognized as the gold standard for high-end gear finishing.
2.1 Core Advantages of Form Grinding
Outstanding Production Efficiency: Form grinding efficiency is 3 to 5 times higher than traditional generating grinding. The grinding wheel contacts and processes the full tooth height synchronously, with low wear rate and stable long-term processing efficiency.
Superior Surface Finish: The one-time forming processing mode avoids repeated tool marks and overlapping grinding traces, delivering far better tooth flank surface roughness than generating grinding, which is suitable for ultra-smooth gear requirements of high-precision transmission equipment.
Simple and Stable Machine Structure: Form grinding equipment features a streamlined mechanical structure, with simpler operation logic and parameter adjustment procedures. It effectively reduces debugging difficulty and equipment failure rate in mass production.
Ultra-Wide Application Versatility: By adjusting spindle configurations and grinding wheel specifications, form grinders support processing of standard gears, shoulder gears, and special-shaped gears. It solves the processing difficulty of gears with fewer than 10 teeth that cannot be stably finished by conventional processes.
High-Precision Tooth Profile Modification: It supports one-stop high-precision involute modification and lead modification, with smooth and uniform modification curves. Compared with generating grinding’s cumbersome adjustment and unsmooth modification traces, form grinding achieves more accurate and stable tooth profile optimization effects.
Flexible Production Adaptability: It perfectly adapts to small-batch customized production and large-scale mass production scenarios, balancing flexible processing and high-efficiency output.
2.2 Precision Capability of Modern Form Grinding
Equipped with advanced CNC wheel dressing technology and real-time in-process measurement systems, modern form grinding equipment achieves micron-level ultra-precision processing, with finished gear accuracy stably reaching ISO Grade 4, fully meeting the ultra-high precision requirements of aerospace, new energy vehicles and precision machinery fields.
3. Generating Grinding: Enveloping Motion-Based Gear Forming Technology
Generating grinding adopts the enveloping motion principle. The grinding wheel is trimmed into a rack tooth flank shape, and the involute tooth profile is formed through continuous relative rolling and meshing motion between the grinding wheel and the workpiece gear. The final tooth profile accuracy entirely depends on the precision of the equipment’s generating motion system.
3.1 Four Main Types of Generating Grinding Machines
Disc Wheel Grinding Machine: Equipped with two narrow-edge rotating disc wheels to simulate rack tooth flanks. The workpiece completes generating motion through rolling discs and steel bands, supporting stable processing up to Grade 4 precision.
Cone Wheel Grinding Machine: The axial section of the grinding wheel is trimmed to a standard rack tooth profile. It features strong versatility and is widely used for single-piece trial production and batch standardized gear processing.
Worm Wheel Grinding Machine: Adopting a working principle similar to gear hobbing machines, it uses a large-diameter single-thread worm-shaped grinding wheel to realize continuous indexing meshing grinding. It balances high efficiency and Grade 4 high precision.
Large Surface Wheel Grinding Machine: Taking the grinding wheel’s working plane as a single rack tooth flank, it achieves the industry’s top Grade 3 precision. It is mainly used for ultra-precision finishing of gear processing tools such as shaper cutters, shaving cutters and master gears.
3.2 Core Technical Characteristics of Generating Grinding
The grinding wheel and workpiece form point or local line contact, resulting in uneven local load distribution on the tooth flank during processing. It features fast stroke speed but limited single material removal capacity. The overlapping meshing and contact lines make the equipment more sensitive to vibration and running noise.
In terms of versatility, the same specification grinding wheel can adapt to processing different gears with the same module, reducing tooling replacement costs. Meanwhile, generating grinding is less affected by environmental temperature changes and workpiece temperature deformation, with excellent processing stability in variable working conditions.
4. Why Gearseiko Prioritizes Form Grinding for High-End Gear Manufacturing
Modern high-end gear manufacturing puts forward comprehensive requirements for precision, surface quality, modification flexibility, production efficiency and cost control. After long-term technical verification and process optimization, Gearseiko takes form grinding as the core finishing process for premium gear products.
Form grinding’s excellent surface finish, high-precision free tooth modification capability, and efficient production performance adapting to both small-batch customization and mass production perfectly match the manufacturing demands of high-end transmission gears. Our form grinding process stably delivers ISO Grade 4 ultra-precision gears, with tooth flank smoothness and meshing accuracy far exceeding industry conventional standards.
In addition, the simple and stable structure of form grinding equipment reduces daily maintenance costs and operational failure risks. It can flexibly process special workpieces such as low-tooth-count pinions and large-diameter industrial gears, covering full-scenario application needs from new energy vehicle transmissions, industrial automation machinery to aerospace precision power systems.
Conclusion
Form grinding and generating grinding are two indispensable core processes in precision gear finishing. Generating grinding excels in tool versatility and temperature stability, with top-level Grade 3 precision for tool calibration processing. Form grinding leads in processing efficiency, surface quality, tooth modification accuracy and production flexibility, becoming the preferred process for high-end customized precision gears.
Adhering to the manufacturing philosophy of micron-level precision control, Gearseiko relies on mature form grinding technology and advanced CNC finishing equipment to break through traditional process limits. We provide global customers with stable, high-precision and low-noise gear products, covering all high-end precision transmission application scenarios.
FAQ | Form Grinding vs Generating Grinding for Precision Gears
Q1: What is the core difference between form grinding and generating grinding?
A1: Form grinding adopts profile matching line contact grinding with a contoured wheel matching the tooth slot shape. Generating grinding forms tooth profiles through enveloping meshing motion between the rack-shaped grinding wheel and workpiece, differing in working principle, efficiency and precision characteristics.
Q2: Which grinding process has higher production efficiency?
A2: Form grinding is 3 to 5 times more efficient than generating grinding. It processes the full tooth height synchronously with lower wheel wear, suitable for both batch and mass production.
Q3: What precision grade can form grinding and generating grinding achieve?
A3: Standard form grinding and most generating grinding machines stably reach ISO Grade 4 precision. Large surface wheel generating grinding supports the highest Grade 3 precision, mainly for precision tool finishing.
Q4: Which process is better for gear tooth profile modification?
A4: Form grinding is far superior. It realizes high-precision involute and lead modification with smooth curves and simple adjustment. Generating grinding has cumbersome debugging and unsmooth modification effects.
Q5: What gears are suitable for form grinding processing?
A5: Form grinding adapts to standard gears, shoulder gears, and special gears with fewer than 10 teeth, covering new energy, aerospace, industrial machinery and other high-precision fields.
Q6: What are the advantages of generating grinding in industrial applications?
A6: It has strong grinding wheel universality for same-module gears, low temperature sensitivity, and stable processing performance in complex environmental conditions, suitable for standardized mass finishing of conventional gears.
