2026 Precision Gear Reliability Engineering Practice of State Function and Limit State Equation
author: Cash
2026-05-03
2026 Precision Gear Reliability: Engineering Practice of State Function and Limit State Equation | Gearseiko

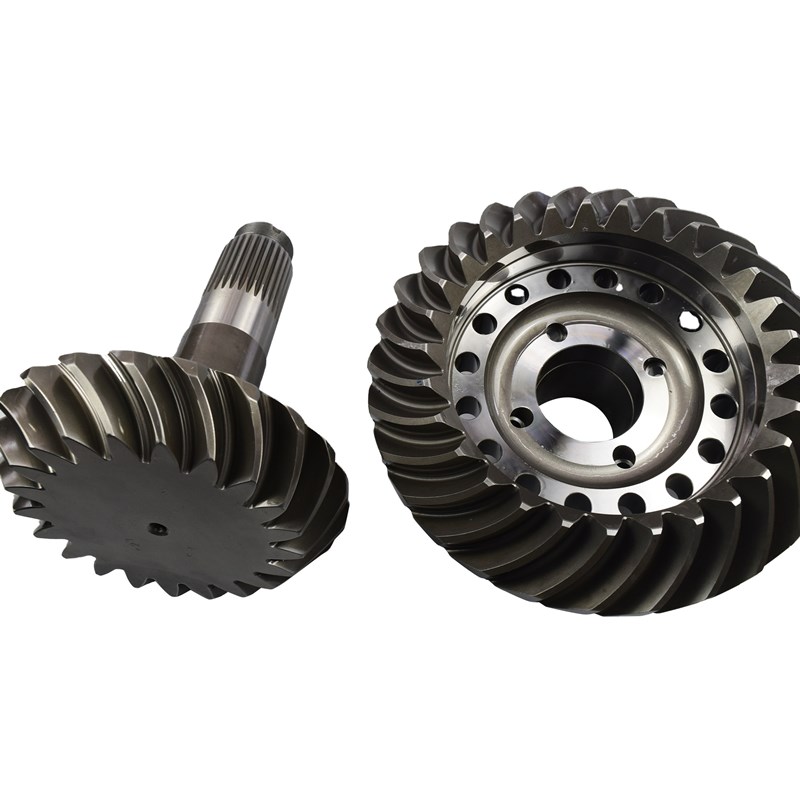

In modern mechanical transmission systems, gears are core components whose reliability directly affects the lifespan and safety of the entire machine. Gearseiko has long focused on the development and manufacturing of high-end precision gears, fully understanding that every meshing and every speed range conceals strict mathematical and physical constraints.
Today, from the perspective of reliability engineering, we discuss how the state function and limit state equation guide gear design and quality assurance, and demonstrate how Gearseiko translates these theories into quantifiable product advantages.Explore Gearseiko’s precision gear reliability engineering solutions here.
What is a State Function?
Every mechanical product is endowed with specific functions during design, such as transmitting torque, changing rotational speed, or ensuring motion accuracy. To quantify whether a gear can complete these intended functions within its expected service life, engineers need to establish a mathematical expression – the state function, typically denoted as \(g(Z)\).
Here \(Z=(Z_1,Z_2,\dots,Z_n)\) is an n‑dimensional random vector containing all uncertain factors that affect gear performance: material fatigue limit, tooth flank hardness, machining errors, assembly eccentricity, actual load fluctuations, lubrication conditions, and even ambient temperature.
For precision gears produced by Gearseiko, we incorporate these random variables one by one into the analysis. For example, tooth root bending strength, tooth surface contact stress, tooth profile tolerances, etc., can all serve as random inputs. The state function \(g(Z)\) then mathematically expresses the ability of the gear to “complete its specified function.”
Limit State: The Boundary Between Safety and Failure
When a gear system is exactly at the critical condition of “about to be unable to complete its intended function,” we call this the limit state, where \(g(Z)=0\). This equation is the limit state equation.
Intuitively:
- When \(g(Z)>0\), the gear is in the normal working zone – the safety margin is positive.
- When \(g(Z)<0\), the gear has entered the failure zone – tooth breakage, excessive wear, or scuffing may occur.
- And \(g(Z)=0\) is a boundary that must not be crossed.
In designing every gear, Gearseiko uses finite element simulations and extensive bench tests to precisely locate its limit state equation. For example, in high‑speed heavy‑load planetary gear systems, we focus on the contact fatigue limit of the teeth.
When the probability distribution of actual Hertzian stress overlaps with the distribution of the material’s allowable stress, the limit state equation reveals the potential failure probability. By optimizing tooth profile modification, material heat treatment processes, and surface strengthening treatments, we can shift the entire probability cloud into the region \(g(Z)>0\) and maintain a sufficient safety distance.
Explicit and Implicit State Functions
In practical engineering, the state function appears in two forms.
Explicit State Function
\(g(Z)\) can be written as a clear mathematical expression of the random variables. For example, the traditional formula for gear tooth root bending stress:\(\sigma_F = \dfrac{F_t}{bm}Y_{Fa}Y_{Sa}Y_\varepsilon\)
If each parameter is treated as a random variable, we can directly construct the explicit expression \(g(Z)=\sigma_{\lim}-\sigma_F\). This form is computationally efficient and convenient for rapid reliability assessment.
Implicit State Function
The expression cannot be written directly in elementary analytic form; it usually requires finite element models, multi‑body dynamics simulations, or numerical iteration to obtain the output.
High‑end modern gears often involve nonlinear contact, thermo‑mechanical coupling, and micro‑topography effects – their state functions are inherently implicit. Gearseiko’s proprietary gear design platform integrates algorithms for solving implicit limit state equations.
By performing Latin hypercube sampling on random variables and combining response surface methods with Monte Carlo simulation, the platform efficiently approximates the failure boundary of implicit functions.Learn more about Gearseiko’s simulation-driven reliability design technology here.
How Gearseiko Practices Reliability Design

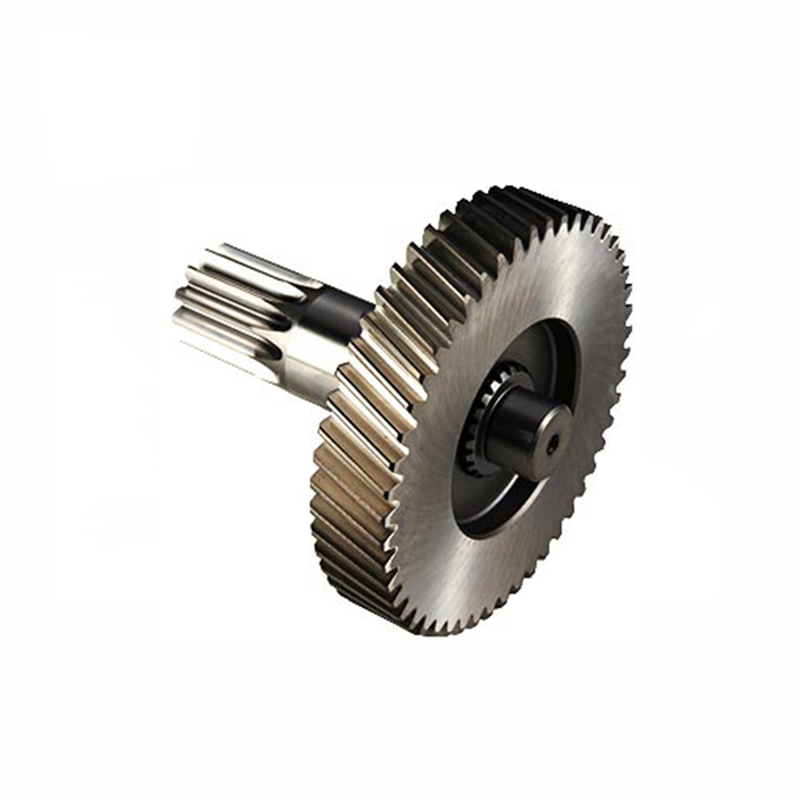

Every precision gear from Gearseiko goes through a full reliability closed loop from concept to mass production:
-
Random factor identificationIdentify all random variables that affect gear function (hardness, profile deviation, axis parallelism, operating temperature, etc.) and assign probability distributions based on measured data.
-
State function constructionFor each failure mode (tooth bending, pitting, scuffing, plastic deformation), establish a corresponding \(g(Z)\) function – using both explicit and implicit forms as appropriate.
-
Limit state solutionUse the first‑order second‑moment method or Monte Carlo methods to calculate reliability indices and failure probabilities, ensuring that the design point lies in the safe region \(g(Z)>0\) with sufficient safety margin.
-
Process feedback optimizationIf a random factor shows excessive sensitivity, we improve machining precision, enhance heat treatment, or adopt active tooth modification to push the limit state boundary outward.
It is this dedicated application of state functions and limit state equations that has earned Gearseiko’s gears long‑term trust in high‑reliability scenarios such as robot joints, wind turbine gearboxes, aviation transmissions, and racing gearboxes.
FAQ: State Function and Limit State Equation in Gear Reliability
Q1: What is a gear state function in reliability engineering?
A1: The state function \(g(Z)\) is a mathematical expression used to quantify whether a gear can perform its intended function within service life, covering random variables like material property, machining error, load fluctuation and temperature.
Q2: What does the limit state equation \(g(Z)=0\) mean?
A2: It is the critical boundary between safety and failure. \(g(Z)>0\) stands for safe working condition, \(g(Z)<0\) means failure risk, and \(g(Z)=0\) is the critical limit state.
Q3: What is the difference between explicit and implicit state functions?
A3: Explicit state function has a clear analytical formula for fast calculation; implicit state function relies on FEA, multi-body dynamics and numerical iteration, suitable for complex high-precision gears with nonlinear coupling effects.
Q4: How does Gearseiko apply limit state theory in actual gear design?
A4: We identify random variables, build state functions for each failure mode, solve limit state with FOSM and Monte Carlo simulation, and optimize machining, heat treatment and tooth modification to maintain sufficient safety margin.
Conclusion
Gear reliability is not just a slogan – it is a series of quantifiable and traceable mathematical engineering practices. From the state function \(g(Z)>0\) to the limit state equation \(g(Z)=0\), Gearseiko always stands at the intersection of precision manufacturing and computational mechanics, providing you with high‑end gears that are not only “qualified” but also “know their reliability.”
To learn more about our reliability design process or to request a custom gear solution, please visit our official website //www.gearseiko.com or contact our technical team.
Gearseiko – Every meshing withstands the test of the limit state.
