2026 Power Recirculating Gear Rotating Test Rig Providing Accurate Strength Data for Case-Hardened Gear Reliability
author: Cash
2026-05-07
2026 Power Recirculating Gear Rotating Test Rig: Providing Accurate Strength Data for Case-Hardened Gear Reliability | Gearseiko
In modern gear transmission R&D, the accuracy of fatigue strength and life prediction directly determines the reliability and safety of complete machinery. For planetary gear transmission systems in particular, the contact fatigue and bending fatigue behavior of gear pairs under actual operating conditions are core input parameters for building reliability prediction models.
So, how can these critical data be obtained scientifically and efficiently? The power recirculating gear rotating test rig is the ideal solution.
As a manufacturer dedicated to high-precision, high-reliability gears, Gearseiko has long been providing robust gear drive solutions for aerospace, new energy vehicles, wind power, heavy machinery, and other demanding fields. We know that only gears rigorously validated can handle complex operating conditions. Therefore, Gearseiko has deeply integrated power recirculating gear rotating test rigs into our own R&D system.Explore Gearseiko’s case-hardened gear reliability testing and strength data validation here.
What is a Power Recirculating Gear Rotating Test Rig?
A power recirculating gear rotating test rig is a specialized device that allows gear pairs to be tested while rotating and meshing. Its typical representative — the FZG gear test machine — has long been a standard tool in international gear testing.
The equipment consists of six core modules:
- Drive unit
- Transmission unit
- Loading unit
- Gear failure monitoring unit
- Lubrication unit
- Measurement unit
These six parts work together to fully evaluate the comprehensive performance of meshing gear pairs.
Unlike conventional open test benches, the power recirculating design returns the output energy to the input side, greatly reducing the driving power required for testing. This makes long-duration, high-load gear fatigue testing more economical, stable and feasible.
Core Functions: Performance Comparison & Realistic Working Condition Simulation
The two most outstanding capabilities of this test rig are summarized as follows:
Gear performance comparison testing
Under identical lubrication, load, and speed conditions, the rig conducts side-by-side comparisons of different materials, heat treatment processes, or tooth surface modifications, enabling engineers to quickly screen and confirm the optimal design and process scheme.
Realistic condition simulation and fatigue life data acquisition
By precisely controlling load spectrum, rotating speed, oil temperature and other parameters, the equipment perfectly replicates the actual stress state of gears in real transmission systems. It acquires authentic full-life fatigue data, which is critical for revising correction factors in mainstream gear strength standards including ISO 6336 and AGMA 2101.

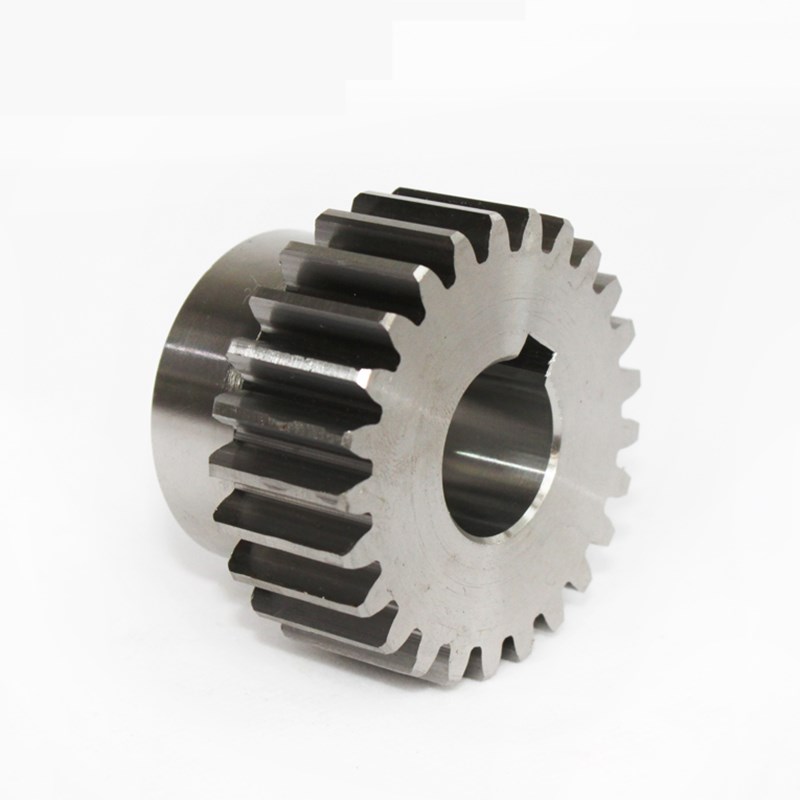

Ideal Test Platform for Case-Hardened Gears — Gearseiko Practical Experience
This test rig is not equally suitable for all gear types.For soft‑surface gears, contact fatigue strength is lower than bending fatigue strength; pitting and scuffing always occur earlier than tooth fracture. It is difficult to obtain pure bending fatigue limit data, as contact fatigue will interfere with test results.

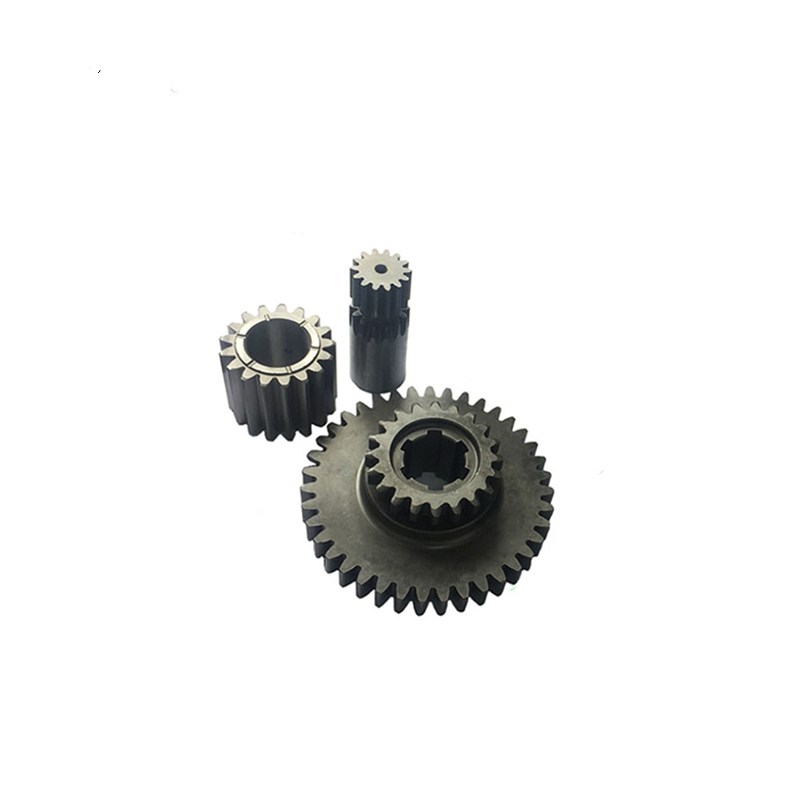

By contrast, Gearseiko’s mainstream products are case‑hardened carburized and quenched gears.For this type of gear:
- Contact fatigue strength is greatly improved
- Contact fatigue and bending fatigue strength are well matched
- Bending fatigue often becomes the dominant failure mode under many working conditions
Our core goal is to obtain accurate strength data — including tooth root bending fatigue limits, S‑N curves, and reliability distribution parameters — to support planetary gear transmission reliability prediction models.
With the power recirculating test rig, Gearseiko achieved perfect test results:Stable power recirculation under up to three times rated torque, good tooth contact state, typical tooth root fatigue cracking as the main failure mode, and high-quality raw strength data fully meeting model calibration requirements.
Gearseiko’s Testing Capabilities & Customer Application Value
Relying on the power recirculating gear rotating test rig, Gearseiko provides customers with professional value-added technical services:
- Customized gear fatigue validation according to actual on-site load spectrum
- Full-process testing from sample preparation to professional failure analysis
- Heat treatment process optimization verification: case depth, retained austenite content and surface hardness comparison
- Independent gear transmission reliability database construction for life design and engineering calculation
Learn more about Gearseiko’s simulation-driven test calibration and gear system reliability design here.
FAQ: Power Recirculating Gear Rotating Test Rig
Q1: What is a power recirculating gear rotating test rig?
A1: It is a standard meshing rotation test equipment represented by FZG gear test machine. It adopts power closed-loop recirculating design, saves driving energy, and supports long-term high-load fatigue test for gear pairs under real meshing conditions.
Q2: What are its main application functions?
A2: Compare performance of different materials and heat treatment processes; simulate actual load and temperature conditions; collect full-life fatigue data for revising ISO 6336 and AGMA standard correction coefficients.
Q3: Why is it especially suitable for case-hardened gears?
A3: Case-hardened carburized gears have balanced contact and bending fatigue strength, tooth root bending crack becomes the main failure mode; it can obtain pure and accurate bending fatigue limit data without contact fatigue interference.
Q4: What technical value can Gearseiko’s test service bring to customers?
A4: Custom load spectrum fatigue test, heat treatment process optimization verification, establishment of gear reliability database, and accurate strength parameters for planetary gearbox life prediction.
Conclusion
The power recirculating gear rotating test rig acts as a key bridge connecting gear material science, manufacturing technology and system reliability engineering. For case‑hardened gears, especially carburized and quenched planetary gears, it provides an efficient, economical and accurate way to obtain authentic fatigue strength data.
Gearseiko is not only a high‑precision gear manufacturer, but also a professional practitioner of gear drive reliability technology. If you need verifiable strength data support for planetary transmission systems, new energy gearboxes or aerospace gearboxes, welcome to contact our technical team.
With rigorous testing standards and superb precision manufacturing, Gearseiko fully safeguards the long-term reliability of your mechanical products.
Visit our official website //www.gearseiko.com for custom gear solutions and professional fatigue testing technical consultation.
